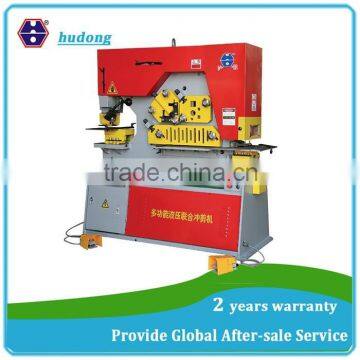

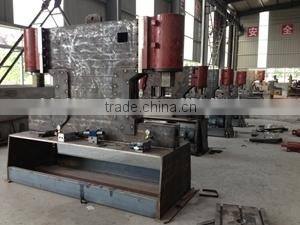

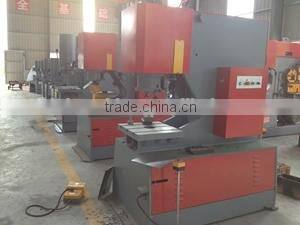

hydraulic punch & shear steel workers
Punching, Angle Steel Shearing, Flat Bar Shearing, Round/Square Bar Shearing, Notching, V-Notching, C-Channel Shearing, I-beam shearing, T-bar shearing, Press Brake, Angle Bending and Pipe Notching. hydraulic ironworker
Model | Q35Y-40 | Q35Y-30 | Q35Y-25 | Q35Y-20 | Q35Y-16 |
Punching force(T) | 200 | 145 | 120 | 90 | 60 |
Max. shearing thickness(mm) | 40 | 30 | 25 | 20 | 16 |
Material strength (N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
Angle of shear | 8° | 8° | 8° | 8° | 7° |
Flat bar(T*W) (mm) | 35*400 25*700 | 30*335 20*600 | 25*330 16*600 | 20*330 10*480 | 16*250 8*400 |
Max. length of cylinder stroke | 100 | 80 | 80 | 80 | 80 |
Stroke times (times/min) | 8-24 | 8-16 | 8-18 | 12-20 | 12-28 |
Depth of throat (mm) | 650 | 600 | 400 | 355 | 300 |
Max. punching thickness(mm) | 35 | 26 | 25 | 20 | 16 |
Max. diameter of punching(mm) | 40 | 38 | 35 | 30 | 25 |
Motor power(kw) | 18.5 | 15 | 11 | 7.5 | 5.5 |
Overall dimensions (L×W×H) | 2800*1260*2420 | 2800*1100*2500 | 2355x960x2090 | 1950x900x1950 | 1700x750x1800 |
Weight(kg) | 9200 | 6400 | 4000 | 2400 | 1800 |
Profile | Round bar (mm) | Square Bar (mm) | Equal Angle (mm) | TBar(mm) | Joist (mm) |
Channel (mm) | ||
| 90° shearing | 45° shearing | 90° shearing | 45° shearing | |||||
| Section view |  | | | | | | ||
| Q35Y-40 | 70 | 60*60 | 200*200*18 | 80*80*10 | 200*200*18 | 80*80*10 | 300*130*13 | 300*89*11.5 |
Q35Y-30 | 65 | 55*55 | 180*180*16 | 80*80*10 | 180*180*16 | 80*80*10 | 280*124*10.5 | 280*86*11.5 |
| Q35Y-25 | 60 | 50*50 | 160*160*14 | 60*60*6 | 160*160*14 | 80*80*10 | 200*102*9 | 200*75*9 |
| Q35Y-20 | 50 | 50*50 | 140*140*12 | 50*50*5 | 140*140*12 | 70*70*10 | 160*86*6 | 160*60*6.5 |
| Q35Y-16 | 45 | 40*40 | 125*125*12 | 70*70*8 | 120*120*12 | 60*60*8 | 126*74*5 | 126*53*5.5 |
Remark :
1. A pair of die
2. A set of angle steel blade
3. A set of square and round bar blade
4. A set of shearing plate blade
5. A set of notching blade
The other die and other tool profiles must to be ordered
