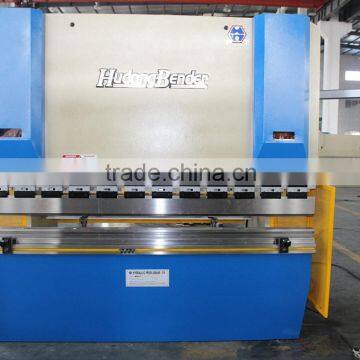

New design E21s controller steel plate bending machine

New design E21s controller steel plate bending machine

Standard fast clmaping
Bosch hydraulic valve
Professional manufacturer
Competitive price
High quality with ISO9001, CE

1. A hydraulic valve: Bosch group.
2. Fuel tank: seals tripod base, rolling technology, with high wear resistance.
3  Adopt a steel plate welded structure, tempering and vibration aging treatment, to eliminate the deformation caused by the welding stress and work stress, to ensure the accuracy of the machine to maintain.
4. Fuselage overall structure, easy to transport, ease of processing, to ensure that the machine precision of the machine.
5. Important parts of the body, slider, etc. are analyzed using ANSYS finite element analysis software to ensure the reliability of the machine.
6. Both ends of the cylinder placed on both sides of the column, direct drive slider; machine structure is simple and good rigidity.
The slider is forced to synchronize the torsion bar, and can withstand a certain degree of partial load.
7  on the mold is equipped with precision compensation agencies, the workpiece can obtain high bending accuracy
8. Back gauge slide stroke are displayed on the monitor.
9. This system can be realized slider rapid decline, slow decline, Work Speeds bending, quick return, and up down the process of slider emergency stop such action.
10. CNC press brake Electrical controls are centralized and reliable, as follows:
Power facilities are located within the body, through the control panel button operation to control and achieve.
Has a foot switch, the bending action through its direct, convenient and quick.
Motor overload and short circuit protection, through the air switch.
11. CNC press brake Mold material: 60 steel. we can according to the customer  workpiece design mold

Control system        Netherlands  DELEM

Electrical elements   France-Schneider

Hydraulic system    Germany-Bosch Rexroth

Motor   Siemens

Servo motor and drive   Taiwan

Gear pump    Rexroth

Linear guides, Ball screw     Taiwan HIWIN

Seal ring    Japan NOK+ VALQUA

Oil tube union joint    Germany EMB+USA parker

Foot switch     South Korea Karcon

Fast clamping     Shanghai

WD67Y Series Technical Parameters

   Maanshan Hudong Heavy Industry Machiney Manufacturing Co., Ltd. is a specialized company, designated by the nation to produce forging equipment, plate benders, plate shears, press machines and rolling benders, with a production history of more than 30 years.
