Hydraulic Torsion Servo Cnc Press Brake

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	Hudong	Model Number	WD67K-100T/4000-E210
Machine Type	Press Brake	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Stainless Steel	Power	Hydraulic
Automation	Manual	Extra Services	End Forming
Certification	ISO 9001:2000	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

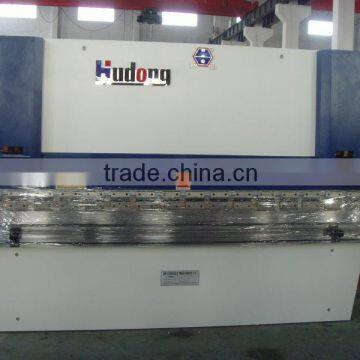

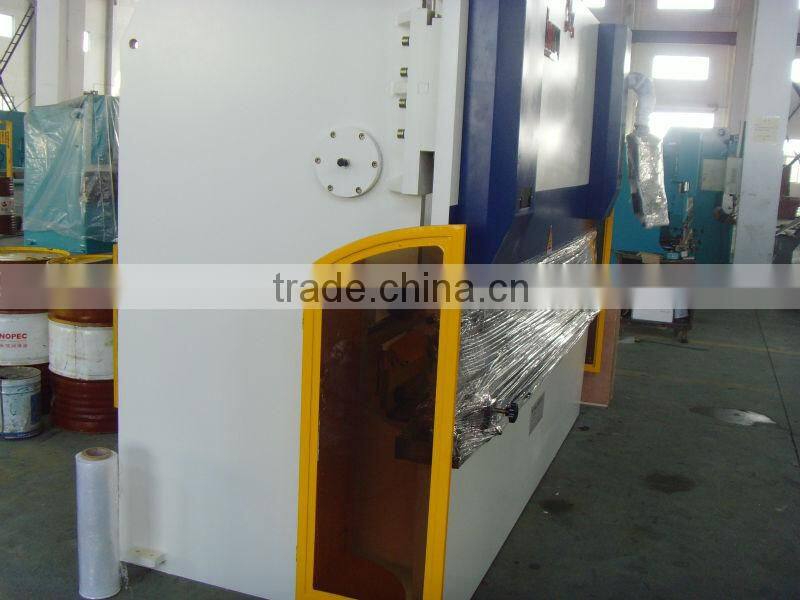

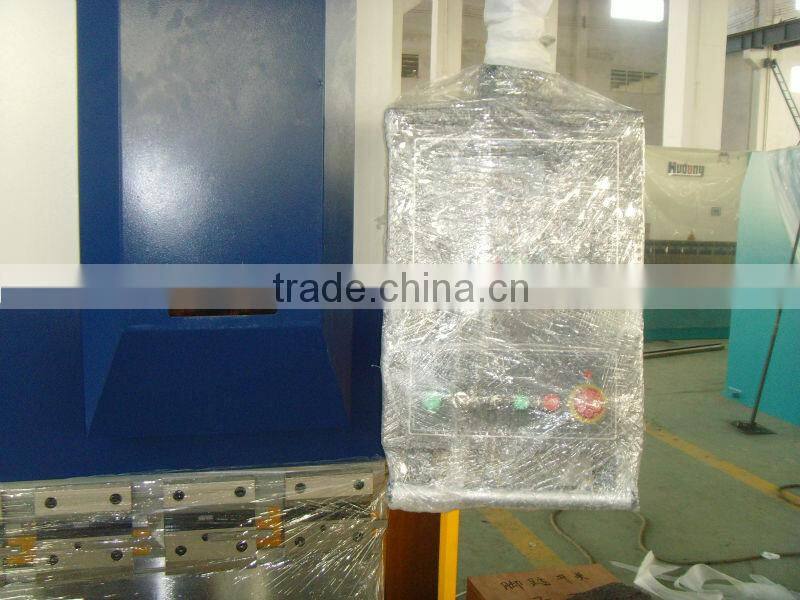

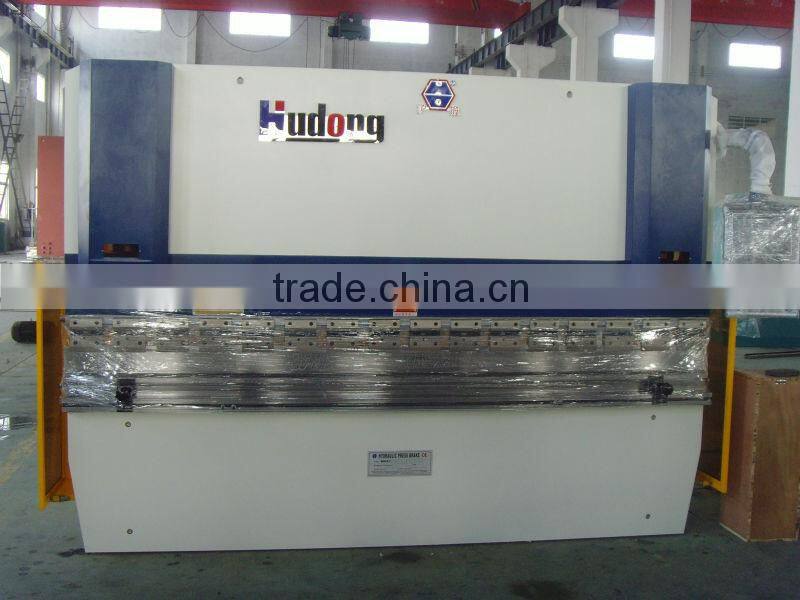

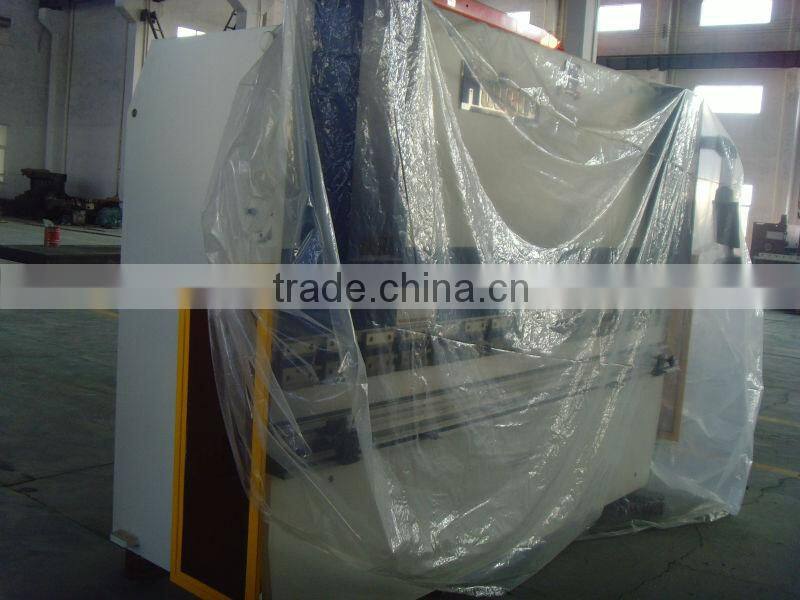

hydraulic torsion servo cnc press brake

1.ATOS valve, Schneider electric
2.Emergency stop foot switch,fast clamping

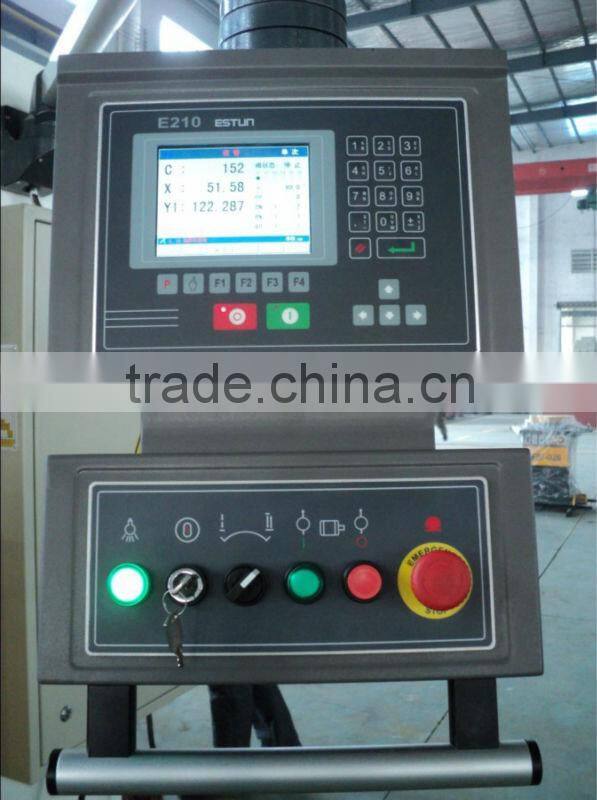

3.E210 CNC system
4.Bending 8' ,10' length of plate

Model	Nominal pressure (KN)	Length of table (mm)	Distance between housings (mm)	Throat depth (mm)	Stroke (mm)	Max. open height (mm)	Motor power (KW)	Weight (Kg)	Overall dimension L×W×H (mm)
40/2200	400	2200	1850	250	100	350	5.5	2400	2260×1200×1900
40/2500	400	2500	2150	250	100	350	5.5	2600	2560×1200×1900
50/2500	500	2500	2150	250	100	350	5.5	3000	2560×1200×1900
63/2500	630	2500	2150	250	120	350	5.5	3800	2560×1340×2200
63/3200	630	3200	2580	250	120	350	5.5	4600	3260×1340×2200
80/3200	800	3200	2580	320	120	350	7.5	5500	3260×1400×2300
80/4000	800	4000	2980	320	120	350	7.5	6100	4060×1400×2300
100/3200	1000	3200	2580	320	130	435	7.5	6700	3260×1480×2450
100/4000	1000	4000	2980	320	130	450	7.5	7800	4060×1480×2450
125/3200	1250	3200	2580	320	130	435	11	7300	3260×1520×2550
125/4000	1250	4000	2980	320	130	435	11	8200	4060×1520×2550
160/3200	1600	3200	2580	320	150	470	11	9800	3260×1600×2800
160/4000	1600	4000	3000	320	150	470	11	11400	4060×1600×2800
160/5000	1600	5000	4000	320	150	470	11	12800	5060×1700×2900
160/6000	1600	6000	5000	320	150	470	11	14600	6060×1700×3000
200/3200	2000	3200	2580	400	200	500	15	12900	3260×1600×2800
200/4000	2000	4000	3000	400	200	500	15	14600	4060×1600×2800
200/5000	2000	5000	4000	400	200	500	15	16600	5060×1700×2900
200/8000	2000	6000	5000	400	200	500	15	18800	6060×1700×3000
250/4000	2500	4000	3000	400	200	560	18.5	16500	4060×1700×3000
250/5000	2500	5000	4000	400	200	560	18.5	17800	5060×1700×3100
250/6000	2500	6000	5000	400	200	560	18.5	19700	6060×1800×3200
300/4000	3000	4000	3000	400	250	560	22	20000	4060×2000×3000
300/5000	3000	5000	4000	400	250	560	22	23000	5060×2000×3100
300/6000	3000	6000	5000	400	250	560	22	26500	6060×2100×3200
600/4000	4000	4000	3000	400	250	570	22	23600	4060×2000×3100
400/5000	4000	5000	4000	400	250	570	22	27000	5060×2000×3200
400/6000	4000	6000	5000	400	250	570	22	30600	6060×2100×3300
500/4000	5000	4000	3000	400	250	590	37	27000	4060×2300×3500
500/5000	5000	5000	4000	400	250	590	37	31000	5060×2300×3500
500/6000	5000	6000	5000	400	250	590	37	35000	6060×2300×3600
600/4000	6000	4000	3000	400	250	610	45	31000	4060×2400×3600
600/5000	6000	5000	4000	400	250	610	45	36000	5060×2400×3600
600/6000	6000	6000	5000	400	250	610	45	41000	5060×2500

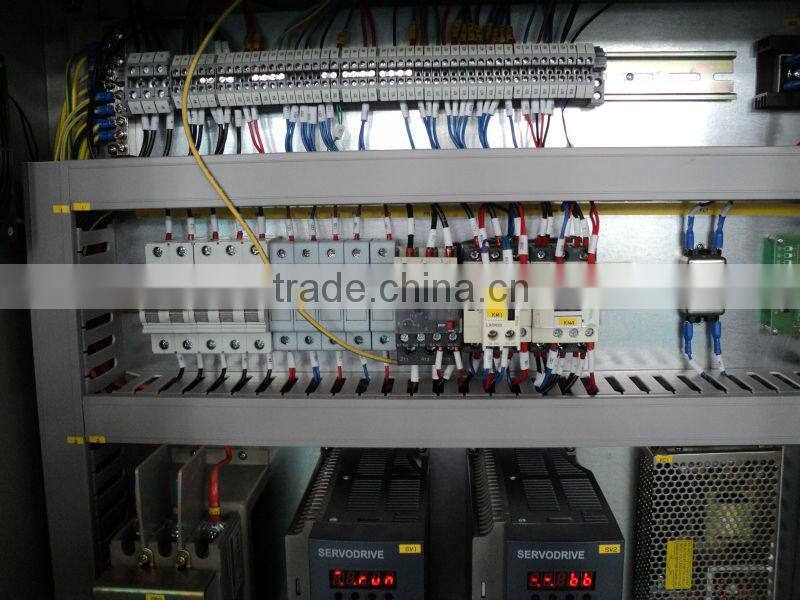

Machine key components list

No	Name	Origin

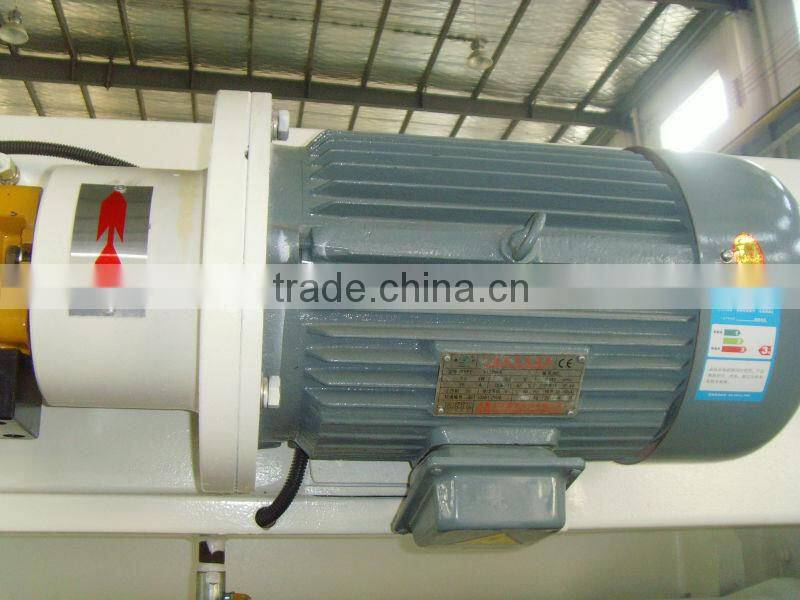

1	Asynchronous motor	Maanshan ,China
2	Relay	Schneider, France
3	Transformer	jiuchuan
4	AC contactor	Schneider, France
5	Circuit Breakers	Schneider, France
6	Servo motor	Taiwan
7	Gear pump	Japan
8	Sealing parts	Valqua ,Japan
9	Hydraulic Integrated Systems	America
