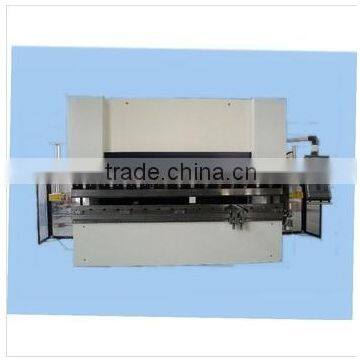

SIMPLE CNC HYDRAULIC PRESS BRAKE WITH HIGH QUALITY

Specifications

Nominal Force KN 5000
 Bending length  6000mm
 Poles Distance  4800mm
 Slider Travel  350mm
 Die height  630mm
 Throat Depth  600mm
 Slider stroke Slider fast down speed  80mm /s
  Slider work speed mm /s          7.5mm /s
  Return speed  80mm /s
 Power  37KW
 Dimension(L×W×H)  6300*2800*4500mm
 Weight  48T
  Block repeat accuracy  ≤±0.02mm
  The slider positioning accuracy  ≤±0.02mm
  Back gauge repeatability positioning accuracy  ≤±0.02mm
   Straightness of work pieces  0.3 / m
  Bending angle error ′ <±50
  Grating resolution  0.005
  Back gauge  x axes travel  1000mm
  Back gauge x axes speed  100mm/s

Main imports of spare parts

 CNC system One set DELEM- DA 65W
 Servo motor One set ESTUN
 Hydraulic system One set Germany Bosch
 Linear guides two roots Taiwan HIWIN
 Ball screw two roots Taiwan HIWIN
 Connector One set Import
 Seal  One set Germany FIETZ,Japan VALQUA
 Grating rulers Two roots Germany
 Electric elements One set Siemens
 Pump One set Germany

The frame is steel welded structure as a whole, by normalizing and high-frequency vibration to eliminate stress, ensure the overall accuracy of machine tools, with excellent rigidity, excellent resistance to twisting, inclination resistance capability .Thickening of the table plate, thickening of the slider, so that the whole machine has high rigidity, so when the slider bending, workbench minimal deformation of the work piece, with excellent straightness and angle of consistency.
