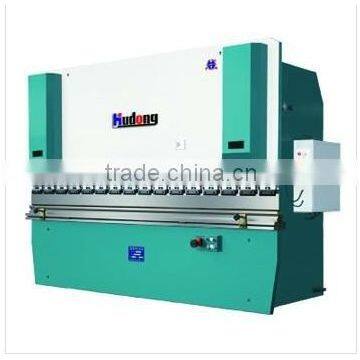

Common Hydraulic Press Brake

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	HUDUAN	Model Number	WC67Y-40T/2500
Machine Type	Press Brake	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Aluminum	Power	Hydraulic
Automation	Manual	Extra Services	Cut To Length
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Good quality
Competitive price
Over 30 years experience
All steel welded structure

WC67Y-40T/2500 hydraulic press brake with mechanical digital display

Type	Nominal Force (KN)	Worktable Length(mm)	Poles Distance (mm)	Throat Depth(mm)	Slider Travel(mm)	Max Open (mm)	Power(kw)	Weight(kg)	Dimension L×W×H(mm)
40/2500	400	2500	2150	245	100	330	5.5	2800	2560×1200×1950

1.Adopts all-steel welded structure and stress elimination by vibration with high machine strength and good rigidness.

2.Hydraulic upper transmission, which is stable and reliable.

3.Mechanical stop and torsion axis synchronization with high accuracy.

4.Electric adjustment of distance of back gauge and stroke of upper slide.

5.The upper die is equipped with deflection compensating mechanism.
