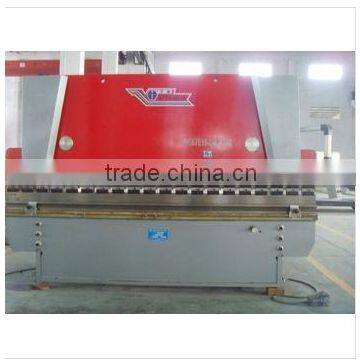

HYDRAULIC NC CONTROL PRESS BRAKE

Specifications

hydraulic NC  control press brake

technical data
 Nominal force KN1250

Max bending thickness mm 6.15
Bending length mm 4000
Column spacing mm 3200
Cylinder stroke mm 150
Max opening height mm 420
Throat depth mm 300
Adjustment volume of slider stroke mm 150
Max working force of hydraulic system MPA 22
Slider speed Down  mm /s 60
 Working  mm /s 7
 Return  mm /s 60
Main motor  KW 11

Dimension  mm 4060×1465×2350

Technical characteristics
1. A hydraulic valve: Atos group.
2. Fuel tank: seals tripod base, rolling technology, with high wear resistance.
3 rack various components of a steel plate welded structure, tempering and vibration aging treatment, to eliminate the deformation caused by the welding stress and work stress, to ensure the accuracy of the machine to maintain.
4. Fuselage overall structure, easy to transport, ease of processing, to ensure that the machine precision of the machine.
5. Important parts of the body, slider, etc. are analyzed using ANSYS finite element analysis software to ensure the reliability of the machine.
6. Both ends of the cylinder placed on both sides of the column, direct drive slider; machine structure is simple and good rigidity.
The slider is forced to synchronize the torsion bar, and can withstand a certain degree of partial load.
7 on the mold is equipped with precision compensation agencies, the workpiece can obtain high bending accuracy
8.Backgauge slide stroke are displayed on the monitor.
9. This system can be realized slider rapid decline, slow decline, Work Speeds bending, quick return, and up down the process of slider emergency stop such action.
10. Electrical controls are centralized and reliable, as follows:
Power facilities are located within the body, through the control panel button operation to control and achieve.
Has a foot switch, the bending action through its direct, convenient and quick.
Motor overload and short circuit protection, through the air switch.
11. Mold material: 60 steel.
