WD67K HYDRAULIC TORSION SERVO CNC PLATE BENDER

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	HUDUAN	Model Number	WD67K 300T/4000
Machine Type	Press Brake	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Carbon Steel	Power	Cnc
Automation	Automatic	Extra Services	End Forming
Certification	ISO 9001:2000	After-sales Service Provided	Engineers available to service machinery overseas

1.CE,ISO,Certification
2.BOSCH Hydraulic system
3.High performance
4.High quality with good price
5.Easy to operation

Product Description

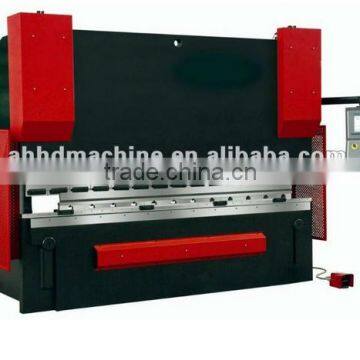

WD67K hydraulic torsion servo CNC plate bender

Type	Nominal Force (KN)	Worktable Length(mm)	Poles Distance (mm)	Throat Depth(mm)	Slider Travel(mm)	Max Open (mm)	Power(kw)	Weight(kg)	Dimension L×W×H(mm)
300/4000	3000	4000	3000	400	250	560	22	20000	4060×2000×3000

1.Adopts all_steel welded structure and stress elimination by vibration with high machine strength and good rigidness.

2.Hydraulic upper transmission,torsion axis synchronization with high accuracy,which is stable and reliable.

3. CNC system adjustment of distance of back gauge and stroke of upper slide.

4.The upper die is equipped with deflection compensating mechanism.
