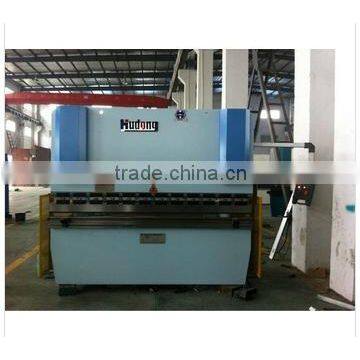

NC Hydraulic press brake
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Brand Name | HUDUAN | Model Number | 80T/2500 | |
| Machine Type | Press Brake | Raw Material | Steel Bar | |
| Material / Metal Processed | Carbon Steel | Power | Cnc | |
| Automation | Automatic | Extra Services | Machining | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

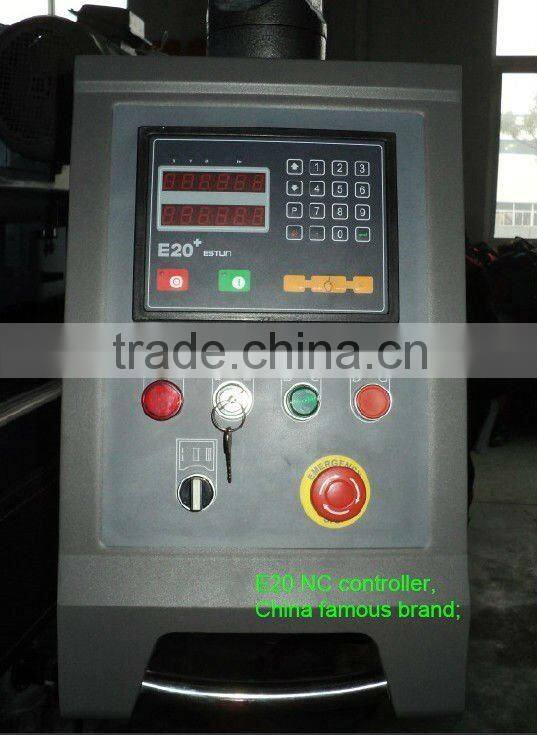

NC Hydraulic press brake1:NC Controller,E20+ NC System
2:CE,ISO
3:Back gauge,stroke can be
motorized adjusted &displaye
NC Hydraulic press brake
1:NC Controller,E20+ NC
2:CE,ISO certificate
3:Back gauge,stroke can be motorized adjusted &displayed ;

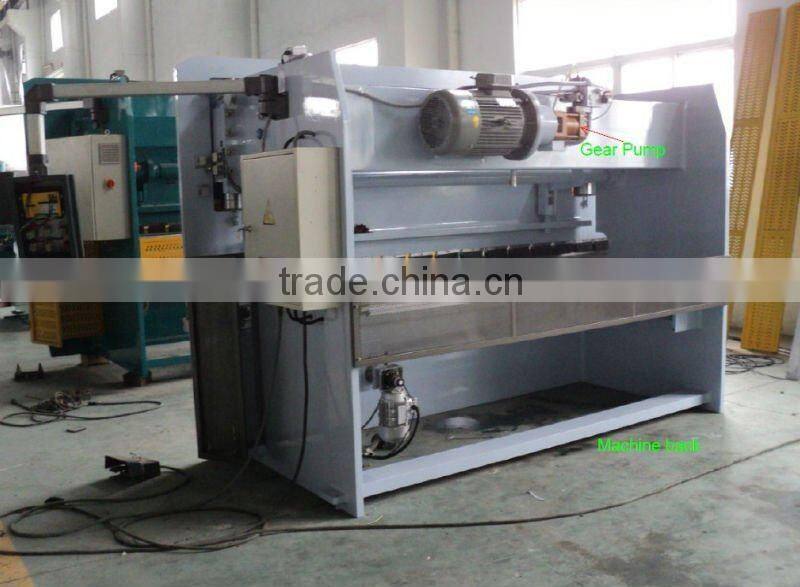

4:Gear Pump ,low noise;
Hydraulic press brake with E18 NC control
No. | Name | Brand | Location |
1 | Motor | Dangpeng | Zhenjiang, China |
2 | Electrics | TE/OMROM | Germany brand |
3 | Oil Cylinder | Wuyang | Maanshan, China |
4 | Seal ring
| DZ | Taiwan |
5 | Pump | Hangfa | Shanghai, China |
6 | Hydraulic system | Omega | Jining, China |
7 | Two axes Controller | E200 | Estun,China |
8 | Punch and Die | Xinming / Lianmeng | Maanshan, China |
9 | Pipe connector | EMB | Germany |
10 | Foot Switch | Karcon | South Korea |

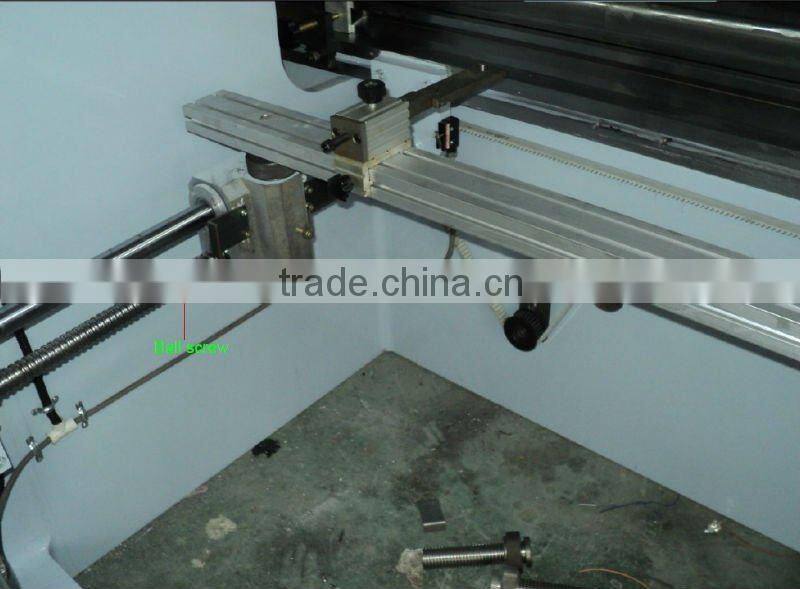

11 | Ball lead screw | HIWIN | Taiwan |
12 | Straight-line guide | HIWIN | Taiwan |
Model: 80T/2500 | |||
No
| Name | Amount | Unit |
1 | Nominal pressure | 800 | KN |
2 | Poles distance | 2,000 | mm |
3 | Throat depth | 250 | mm |
4 | Slipper stroke | 120 | mm |
5 | Max. opening height | 350 | mm |
6 | Slipper stroke adjustment | 100 | mm |
7 | Diameter of cylinder | 160 | mm |
8 | Main motor power | 5.5 | kw |
9 | Oil pump power | 10 | ml/r |
10 | System pressure | 22 | Mpa |
11 | Wallboard thickness | 35 | mm |
12 | Slipper thickness | 40 | mm |
13 | Machine weight | 5,000 | Kg |
14 | Workbench length | 2,500 | mm |
15 | Dimension (LxWxH) | 2,600x1,700x2,320 | mm |
