BIG MACHINE OF SIMPLE CNC HYDRAULIC PRESS BRAKE

Specifications

hydraulic NC  control press brake

technical data
 Nominal force KN 2000
Max bending thickness mm 6.15
Bending length mm 4000
Column spacing mm 3200
Cylinder stroke mm 150
Max opening height mm 420
Throat depth mm 400
Adjustment volume of slider stroke mm 150
Max working force of hydraulic system MPA 22
Slider speed Down  mm /s 60
 Working  mm /s 7
 Return  mm /s 60
Main motor  KW 15
Dimension  mm 4060×1600×2700

Technical characteristics
1. A hydraulic valve: Atos group.
2. Fuel tank: seals tripod base, rolling technology, with high wear resistance.
3 rack various components of a steel plate welded structure, tempering and vibration aging treatment, to eliminate the deformation caused by the welding stress and work stress, to ensure the accuracy of the machine to maintain.
4. Fuselage overall structure, easy to transport, ease of processing, to ensure that the machine precision of the machine.
5. Important parts of the body, slider, etc. are analyzed using ANSYS finite element analysis software to ensure the reliability of the machine.
6. Both ends of the cylinder placed on both sides of the column, direct drive slider; machine structure is simple and good rigidity.
The slider is forced to synchronize the torsion bar, and can withstand a certain degree of partial load.
7 on the mold is equipped with precision compensation agencies, the workpiece can obtain high bending accuracy
8.Backgauge slide stroke are displayed on the monitor.
9. This system can be realized slider rapid decline, slow decline, Work Speeds bending, quick return, and up down the process of slider emergency stop such action.
10. Electrical controls are centralized and reliable, as follows:
Power facilities are located within the body, through the control panel button operation to control and achieve.
Has a foot switch, the bending action through its direct, convenient and quick.
Motor overload and short circuit protection, through the air switch.
11. Mold material: 60 steel.

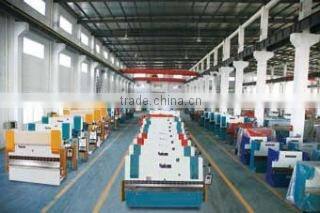

Maanshan Hudong Heavy Industry Machine Tool Manufacture Co., Ltd. is a specialized company, designated by the nation to produce forging equipment, plate benders, plate shears, press machines and rolling benders, with a production history of more than 30 years.

With complete equipment, abundant technical force and preferable geographic location, our company has developed rapidly on the design and manufacture. We have adopted advanced processing equipment, perfect design plan and consummate technological flow. Our products have beautiful appearance, durable structure and reliable performance. Some products have won the title of "high quality award", and we have been assessed as "AAA Credit Unit" for several years.

Our products have passed the certification of ISO9001:2008 quality management system. All products have obtained product responsibility insurance by PICC. Our production scale has been extended year after year with advantaged product market and high recognition. For 30 years, our company has always adhered to the idea of "customer first, quality first" with faithful management, and established reliable market channel.

Our objective is "high precision, advanced technology, strive for manufacturing perfect machines". We are looking forward to

establishing relationships with you in the near future.
