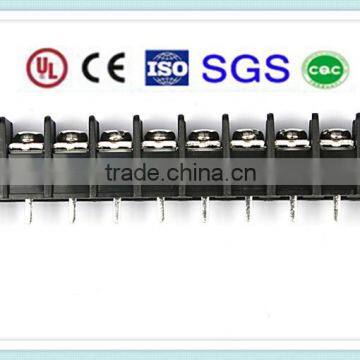

7.62mm Pitch 11P PCB Barrier Terminal Block KDT25 300V 15A with UL CE ROHS
US$ 0.05 - 0.07
/ Piece
1000 Pieces(Min. Order)
- Ningbo
- T/T Credit Card
You May Like
-
2KDS Electronic Terminal Block
-
Hot Sale High Quality 220V-600V Electrical Terminal Block With UL, CE, ISO, SGS,CQC Approved
-
Audio Terminal Block KT4 11mm/13mm Pitch 300V 30A
-
Straight and Right Angle Pin Dual Row Brass Terminal Block Connector 300V 10A 9.52mm Pitch
-
Barrier double row screw terminal block connector
-
0.8 Thick Ni Plated Screw Barrier Double Row Screw Terminal Connector 400V 30A 11mm Pitch KT2
Product Details
| Place of Origin | Zhejiang, China | Brand Name | XIONGSHI | |
| Model Number | KDT25 | Type | Spade Terminal |
Product Description
7.62mm Pitch 11P PCB Barrier Terminal Block KDT25 300V 15A with UL CE ROHS
Product Description
7.62mm Pitch 11P PCB Barrier Terminal Block KDT25 300V 15A Specification
| KDT25 | |
| Approval | UL |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 15A |
| Wire range | 22-14AWG |
| Withstand Voltage | AC2000V for 1 minute |
| Insulation Resistance | 500 mΩ / DC 500V |
| Materials | |
| Plastic Housing | PBT, UL94V-0, Black |
| Operation Temperature | -40℃- +105℃ |
| Terminal | Brass, Tin Plated |
| Screw | Steel, M3.0, Ni Plated |
| Torque Value | 8Kg/cm |
7.62mm Pitch 11P PCB Barrier Terminal Block KDT25 300V 15A Drawing
7.62mm Pitch 11P PCB Barrier Terminal Block KDTE25 300V 15A
7.62mm Pitch 11P PCB Barrier Terminal Block KDT25 300V 15A
7.62mm Pitch 11P PCB Barrier Terminal Block KDT25 300V 15A
7.62mm Pitch 3P PCB Barrier Terminal Block KDT25 300V 15A
7.62mm Pitch 19P PCB Barrier Terminal Block KDT25 300V 15A
7.62mm Pitch 20P PCB Barrier Terminal Block KDT25 300V 15A
Certificate: CE, UL, ISO9001-2008, SGS, CQC
Application:
Packaging & Shipping
Company Information
Beijing Tiandi Nayuan Technology Co., Ltd. was established in 2003, is a professional manufacturer of terminal blocks. The company has passed the SGS, CQC, CE, UL, ISO9001: 2008 quality system certification for the purpose of "quality first, reputation first" committed "to meet customer demand" production and operation mode.
Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!
Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!
Dear valued clients, thank you for your interests to our products. We have more than 10 years professional experience in terminal blocks fields. For more details, pls feel free to contact us.
