Home > Products > Barrier Terminal Block > Barrier Terminal Block With Fixing Hole and Transparent Cover KDT75 600V 40A 13mm Pitch
Barrier Terminal Block With Fixing Hole and Transparent Cover KDT75 600V 40A 13mm Pitch
Negotiable
/ Unit
1000 Units(Min. Order)
- Ningbo
- T/T Credit Card
You May Like
-
PCB Barrier Curve Terminal Block With Transparent Cover KDT75W 600V 40A 13mm Pitch
-
Mini Speaker Terminal Connector KT4 11mm/13mm Pitch 300V 30A
-
High and Low Double Row Barrier Terminal Block 20 Pin Connector 2KDS 300V 10A 7.62mm Pitch
-
Quick Release Connector KT2 300V 400V 660V 30A
-
Tin Gold Silver Plated Brass Louderspeaker Terminal Block KT4 11mm/13 mm Pitch 300V 30A
-
Double Row Gold Plated Terminal Block KT4 11mm/13mm Pitch 300V 30A
Product Details
| Place of Origin | Zhejiang, China | Brand Name | XIONGSHI | |
| Model Number | KDTE75W | Number of Contacts | 11 - 20 | |
| Conductor Size | 11 - 20 AWG | Type | Other, Barrier, Barrier |
Product Description
Barrier Terminal Block with Fixing Hole and Transparent Cover KDT75
600V 40A 13mm Pitch
Barrier Terminal Block with Fixing Hole and Transparent Cover KDT75 600V 40A 13mm Pitch Parameter
Center Space: 13mm
Rated Voltage/Current: 600V 40A
Surge Voltage: 4000V
Wire Range: 20-8AWG
Screw Torque: 13ibf. in
Screw Material: M4 , Ni Plated Steel Screw
Terminal Material: Brass, Tin Plated
Insulation Material: PBT, V-0, Black
Temp. Range: -40 ℃---+120 ℃

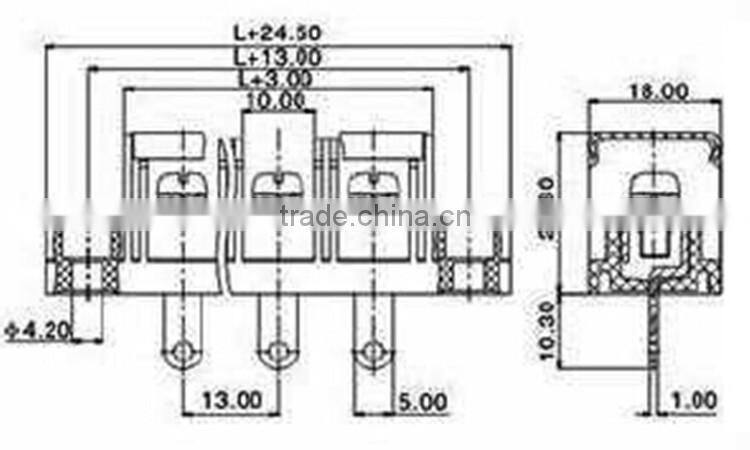

Barrier Terminal Block with Fixing Hole and Transparent Cover KDT75 600V 40A 13mm Pitch Design
Barrier Terminal Block with Transparent Cover KDT75W 600V 40A 13mm Pitch, Angle Pin, Tin Plated Brass Pin, Ni Plated Steel Screw
Barrier Terminal Block with Transparent Cover KDTE75 600V 40A 13mm Pitch, Wire Hole Pin, Tin Plated Brass Pin, Ni Plated Steel Screw
Barrier Terminal Block with Transparent Cover KDTE75W 600V 40A 13mm Pitch, Wire Through Hole Pin, Fixing Flange, Tin Plated Brass Pin, Ni Plated Steel Screw
Certificate: CE, UL, ISO9001-2008, SGS, CQC
