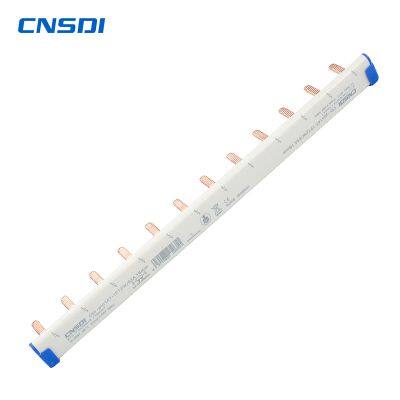

CNSDI Pin type 63A Copper Comb Busbar with PVC Enclosure for Circuit Breaker
- 100000 Piece / Pieces per Month
- Ningbo
- T/T L/C PayPal
- 15 days
You May Like
-
CNSDI fork type 63A Copper Comb Busbar with 12 modules for Circuit Breaker
-
CNSDI Compact Design 160A Din Rail Pan Assembly with 6way 8way 10way for Distribution Board
-
CNSDI 125A Busbar Chassis with 6way 8way 10way for Distribution Board
-
CDi-PG22-3PH 225A 30Ways Pan Assembly busbar chassis,for Most MCB, top or bottom
Product Details
| Brand Name | CNSDI | Place of Origin | China | |
| Model Number | cdi-147-1P12W-18mm |
Product Description
Product Parameter
Brand: cnsdi
Product or component type:Comb busbar
Mounting mode:Horizontal
Part code: CDi-pin1.4x7x4-1P 12W 63A/18mm
Amperage Rating:63 A
Material: t3Copper and Pvc
Accessory / separate part category:Connection accessory
Lines description:1L
Length in 18 mm modules:12
Standards:IEC 60898-1,IEC 60947-7-1
Color: White
This CDi-pin147 product is a cuttable horizontal comb busbar 12 modules for UL 489 listed miniature circuit breakers up to a 63 A current rating. It is dedicated to 1L installations. The type is L (Line). It is a set of 1 device. It is suitable for 12 devices (1P). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 10mm2. The type of electric connection is PIN. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 500VAC.The color of the device is white. It complies with IEC 60947-7-1 and IEC 60898-1 standards.
