PCB Barrier Curve Terminal Block with Transparent Cover KDT75W 600V 40A 13mm Pitch
US$ 0.09 - 5
/ Piece
1000 Pieces(Min. Order)
- Ningbo
- T/T Credit Card
You May Like
-
Mini Speaker Terminal Connector KT4 11mm/13mm Pitch 300V 30A
-
High and Low Double Row Barrier Terminal Block 20 pin Connector 2KDS 300V 10A 7.62mm Pitch
-
Quick Release Connector KT2 300V 400V 660V 30A
-
Tin Gold Silver Plated Brass Louderspeaker Terminal Block KT4 11mm/13 mm Pitch 300V 30A
-
Double Row Gold Plated Terminal Block KT4 11mm/13mm Pitch 300V 30A
-
7.62mm Pitch 14P PCB Barrier Terminal Block KDT25 300V 15A with UL CE ROHS
Product Details
| Place of Origin | Zhejiang, China | Brand Name | XIONGSHI | |
| Model Number | KDT75W | Number of Contacts | Other, 2-24 | |
| Conductor Size | 11 - 20 AWG | Type | Other, Barrier, Barrier |
Product Description

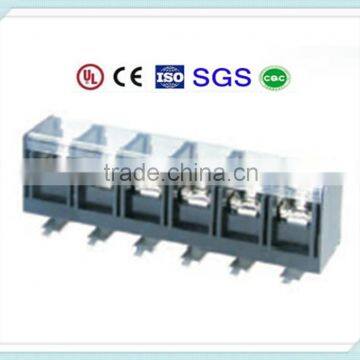

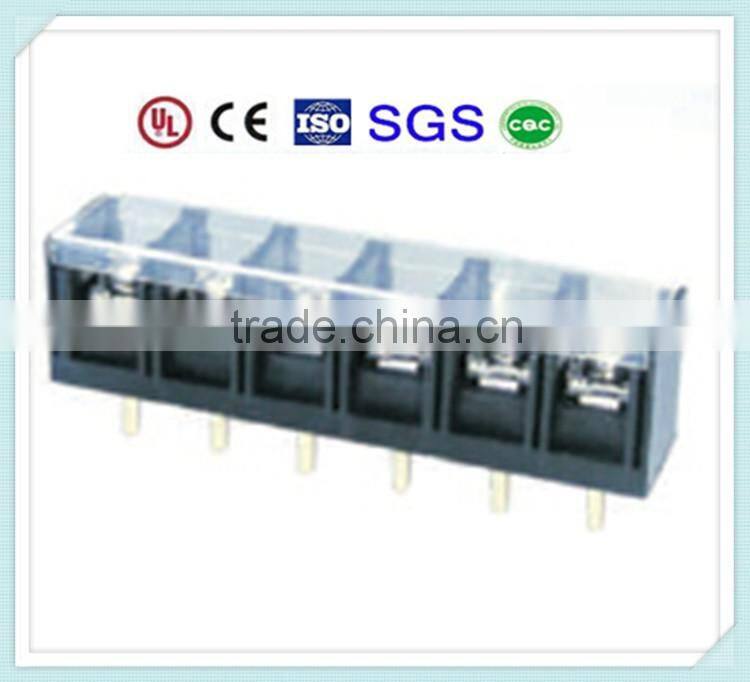

Barrier Curve Terminal Block with Transparent Cover KDT75W
600V 40A 13mm Pitch
Barrier Curve Terminal Block with Transparent Cover KDT75W 600V 40A 13mm Pitch Parameter
Center Space: 13mm
Rated Voltage/Current: 600V 40A
Surge Voltage: 4000V
Wire Range: 20-8AWG
Screw Torque: 13ibf. in
Screw Material: M4 , Ni Plated Steel Screw
Terminal Material: Brass, Tin Plated
Insulation Material: PBT, V-0, Black
Temp. Range: -40 ℃---+120 ℃

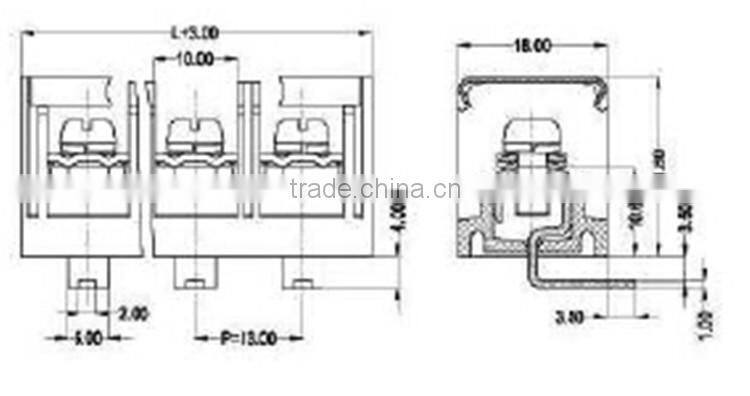

Barrier Curve Terminal Block with Transparent Cover KDT75W 600V 40A 13mm Pitch Design
Barrier Curve Terminal Block with Transparent Cover KDT75W 600V 40A 13mm Pitch, Angle Pin, Tin Plated Brass Pin, Ni Plated Steel Screw
Barrier Terminal Block with Transparent Cover KDTE75 600V 40A 13mm Pitch, Wire Hole Pin, Tin Plated Brass Pin, Ni Plated Steel Screw
Barrier Terminal Block with Transparent Cover KDTE75W 600V 40A 13mm Pitch, Wire Through Hole Pin, Fixing Flange, Tin Plated Brass Pin, Ni Plated Steel Screw
Barrier Terminal Block with Transparent Cover KDTE75W 600V 40A 13mm Pitch, Tin Plated Brass Pin, Ni Plated Steel Screw
Certificate: CE, UL, ISO9001-2008, SGS, CQC
Application:
Packaging & Shipping
Company Information
Beijing Tiandi Nayuan Technology Co., Ltd. was established in 2003, is a professional manufacturer of terminal blocks. The company has passed the SGS, CQC, CE, UL, ISO9001: 2008 quality system certification for the purpose of "quality first, reputation first" committed "to meet customer demand" production and operation mode.
Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!
Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!
Dear valued clients, thank you for your interests to our products. We have more than 10 years professional experience in terminal blocks fields. For more details, pls feel free to contact us.
