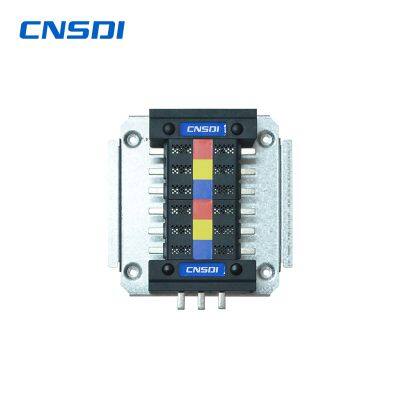

CNSDI 125A Busbar Chassis with 6way 8way 10way for Distribution Board

Product Parameter
Brand: cnsdi
Product or component type:Encapsulated Chassis
Device application:Distribution board
Part code: CDi4010-3PH 125A/04W
Amperage Rating:125 A
Network type:AC
Rated voltage:415 V 50 Hz
Short-circuit withstand:25 kA 0.1 s
[Ui] rated insulation voltage:500 V
[Uimp] rated impulse withstand voltage:6 kV
Number of ways:1 way (incomer) - 3P
Number of poles:12 x 18 mm
Number of poles:12
Standards:IEC/EN 60947-7-1

CNSDI’s CDi4010-3PH Encapsulated Chassis is a high-performance electrical distribution solution. This isolation Encapsulated Chassis provides a quick and easy method to connect MCBs.The Ie rated operational current 125A and Ue rated operational voltage of 415V at 50 Hz This Chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and ootgoer 1Ph or 3P devices The number of outgoing ways in Pan assembly is 12 with pitch of 18mm. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV.ThisEncapsulated Chassis product complies with IEC/EN 60947-7-1 standard.
