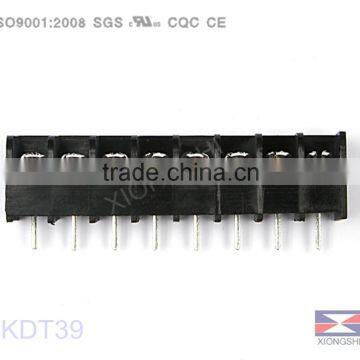

10P Earth Electric Socket Terminal Connector KDT39 300V 20A 8.25mm Pitch
Negotiable
/ Unit
1000 Units(Min.Order)
- 50000 Unit / Units per Month
- Ningbo
- T/T Credit Card
You May Like
-
7.62mm Pitch 13P PCB Barrier Terminal Block KDT25 300V 15A with UL CE ROHS
-
9.5mm Pitch Barrier Terminal Block KDT45 300V 25A with UL CE ROHS
-
Welding Terminal Block KT96 14.5mm Pitch 600V 40A
-
High and Low Double Row Barrier Terminal Block 18 pin Connector 2KDS 300V 10A 7.62mm Pitch
-
Barrier Terminal Block with Fixing Hole and Transparent Cover KDT75 600V 40A 13mm Pitch
-
PCB Barrier Curve Terminal Block with Transparent Cover KDT75W 600V 40A 13mm Pitch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | XIONGSHI | |
| Model Number | KDT39 | Number of Contacts | 11 - 20 | |
| Conductor Size | 11 - 20 AWG | Type | Barrier |
Product Description
10P Earth Electric Socket Terminal Connector KDT39 300V 20A 8.25mm Pitch
Product Description
10P Earth Electric Socket Terminal Connector KDT39 300V 20A 8.25mm Pitch Terminal Block Specifications
| KDT39 | |
| Approval | UL |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 20A |
| Wire range | 22-12AWG |
| Withstand Voltage | AC2000V for 1 minute |
| Insulation Resistance | 500 mΩ / DC 500V |
| Materials | |
| Plastic Housing | PBT, UL94V-0, Black |
| Operation Temperature | -40℃- +105℃ |
| Terminal | Brass, Tin Plated |
| Screw | Steel, M3.0, Ni Plated |
| Torque Value | 12Kg/cm |
10P Earth Electric Socket Terminal Connector KDT39 300V 20A 8.25mm Pitch Drawing
Pitch 12.7mm 600V, 50A Barrier Terminal Block KDT Series KDT25
Barrier Terminal Block KDTE25 with fix hole end
Double Row Screw Barrier Din Rail Terminal Block Connector KT2
Double Row Screw Barrier Terminal Block Connector KT8-11
Pitch 12.7mm 600V, 50A Barrier Terminal Block KDT79
Certificate
Company Information
Beijing Tiandi Nayuan Technology Co., Ltd. was established in 2003, is a professional manufacturer of terminal blocks. The company has passed the SGS, CQC, CE, UL, ISO9001: 2008 quality system certification for the purpose of "quality first, reputation first" committed "to meet customer demand" production and operation mode.
Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!
Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!
Packaging & Shipping
Package
Dear valued clients, thank you for your interests to our products. For more details, pls feel free to contact me
