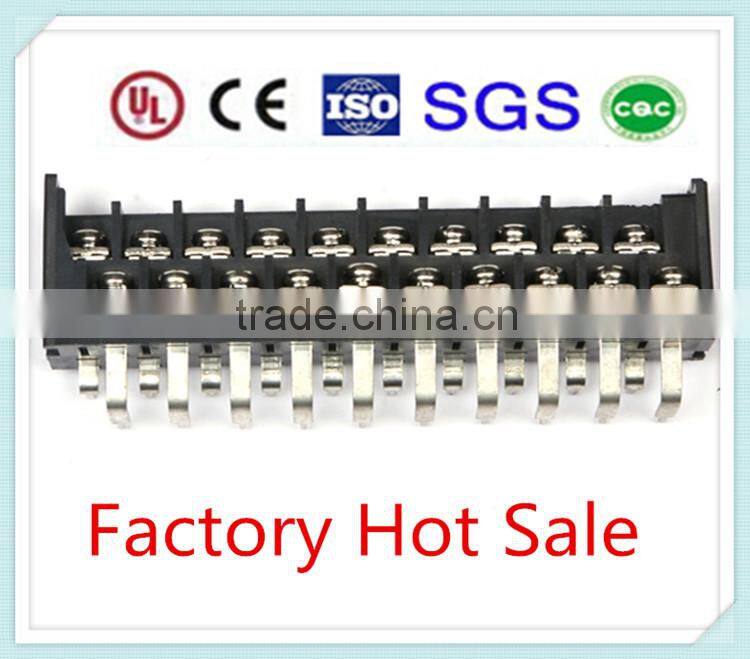

High and Low Double Row Barrier Terminal Block 20 Pin Connector 2KDS 300V 10A 7.62mm Pitch
- Ningbo
- T/T Credit Card
You May Like
-
Quick Release Connector KT2 300V 400V 660V 30A
-
Tin Gold Silver Plated Brass Louderspeaker Terminal Block KT4 11mm/13 mm Pitch 300V 30A
-
Double Row Gold Plated Terminal Block KT4 11mm/13mm Pitch 300V 30A
-
7.62mm Pitch 14P PCB Barrier Terminal Block KDT25 300V 15A With UL CE ROHS
-
600V 150A 26mm Pitch Dinrail Terminal Block KDT16-XS
-
600V 150A 26mm Pitch Electrical Terminal Connector KDT16-XS
Product Details
| Place of Origin | Zhejiang, China | Brand Name | XIONGSHI | |
| Model Number | 2KDS | Type | Other, fence, Barrier double row |
Product Description
Terminal Block Specification
| 2KDS | |
| Approval | UL |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 10A |
| Wire range | 22-14AWG |
| Withstand Voltage | AC2000V for 1 minute |
| Insulation Resistance | 1000 mΩ / DC 500V |
| Materials | |
| Plastic Housing | PBT, UL94V-0, Black |
| Operation Temperature | -40℃- +130℃ |
| Terminal | Brass, Silve Plated |
| Screw | Steel, M3.0, Zinc Plated |
| Torque Value | 8Kg/cm |

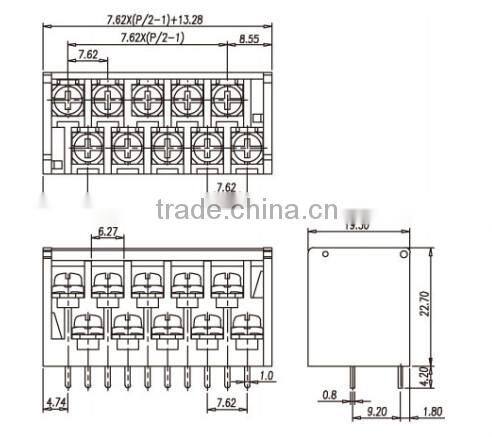

Drawing

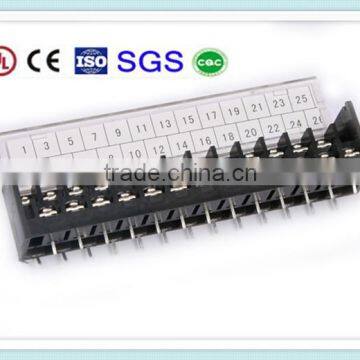

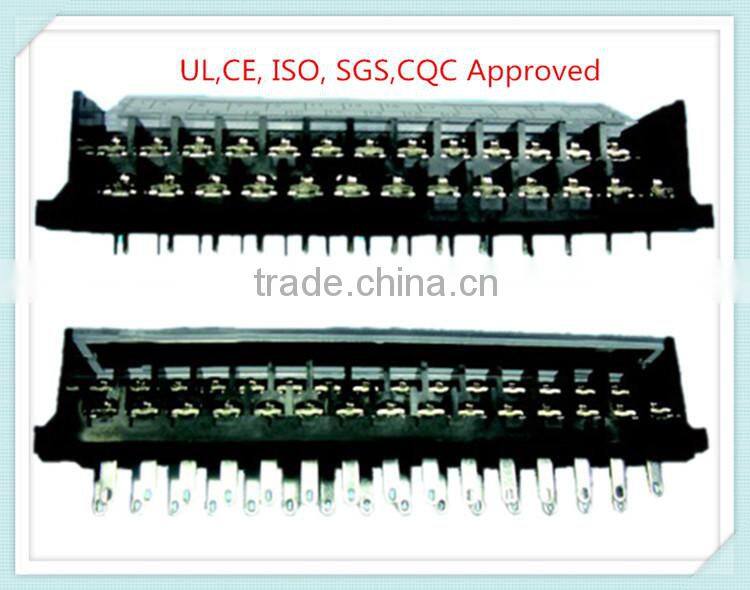

High and Low 2 Row Welding Terminal Block Connector , Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm

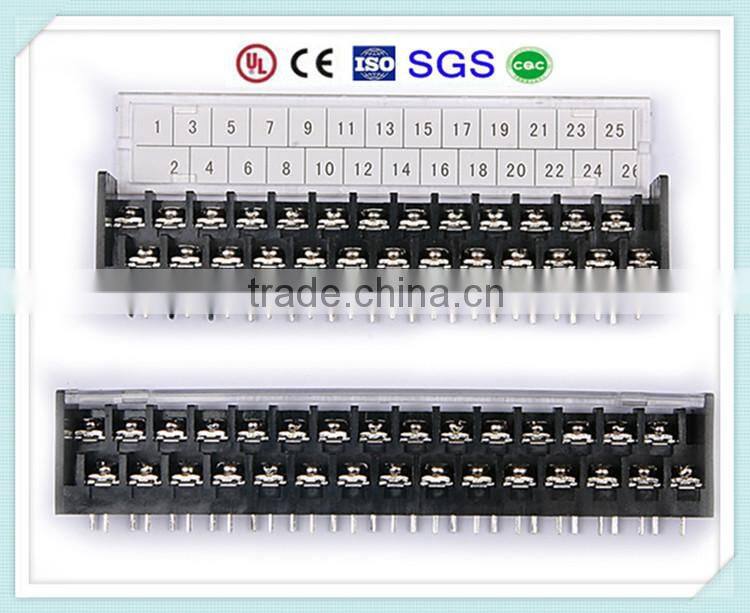

High and Low 2 Row Welding Terminal Block Connector with Wire Hole and Without, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm

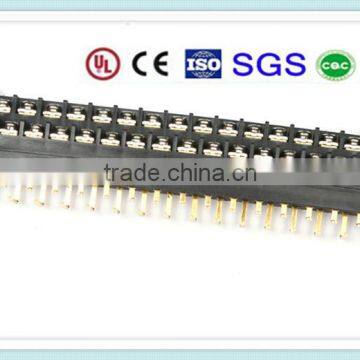

Double Row Ladder Type Welding Terminal Block Connector with Angle Pin, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm

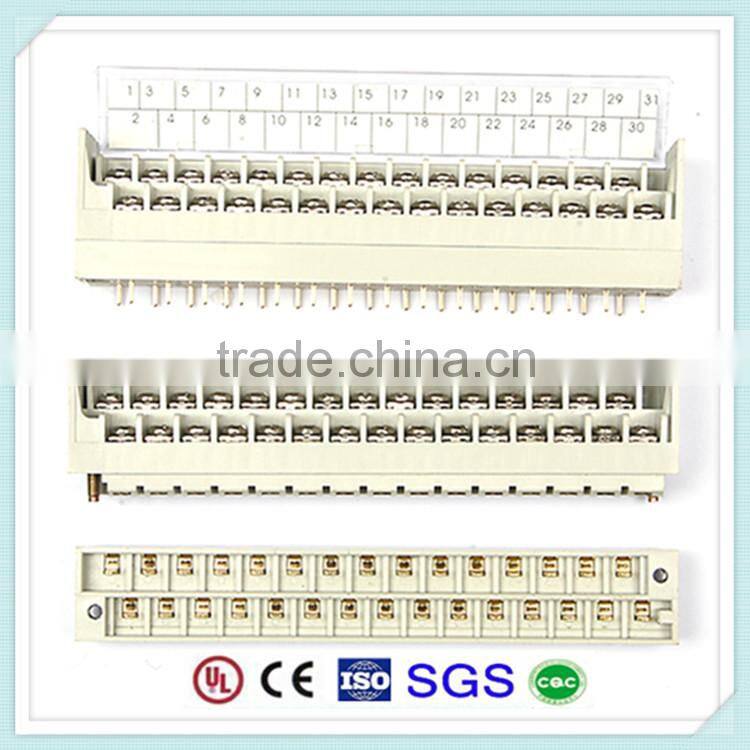

Double Row Terminal Block Connecto, Screw Fix Plug and Socket

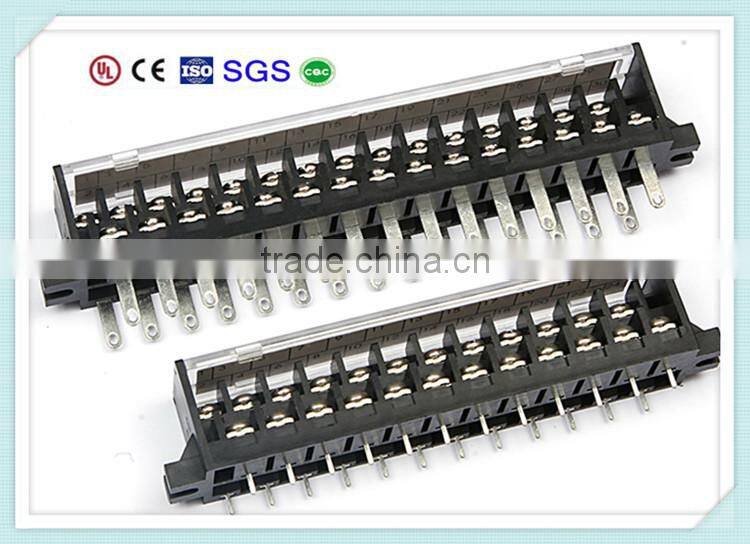

Screw Double Row Ladder Type Electric Terminal with Cover, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm

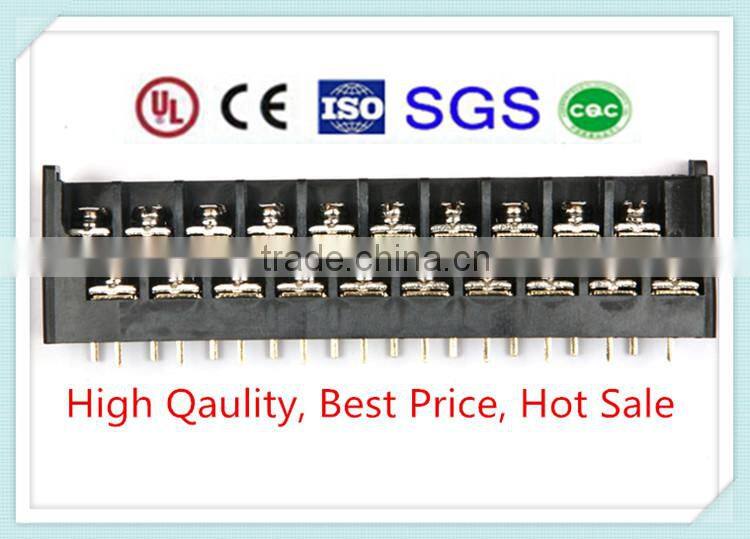

Screw Double Row Ladder Type Electric Terminal with Straight Pin, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm

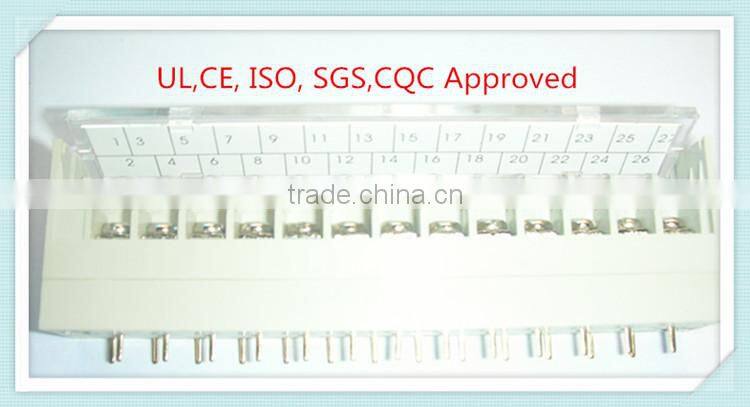

Certificate: CE, UL, ISO9001-2008, SGS, CQC
Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!
Dear valued clients, thank you for your interests to our products. We have more than 10 years professional experience in terminal blocks fields. For more details, pls feel free to contact us.
