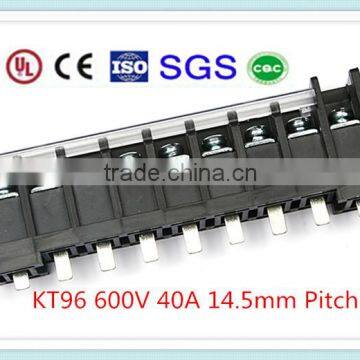

Welding Terminal Block KT96 14.5mm Pitch 600V 40A

FOB Price

Negotiable / Piece

1000 Pieces(Min.Order)

Supply Ability 300000 Piece / Pieces per Month
Port NINGBO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	XIONGSHI
Model Number	KT96		Type	Other, WELDING LAYOUT, Welding Terminal Block

Product Description

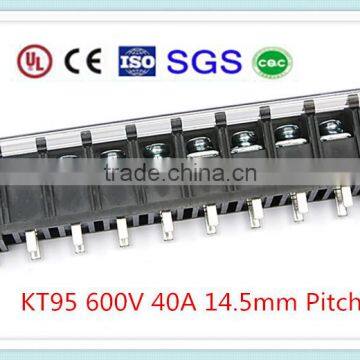

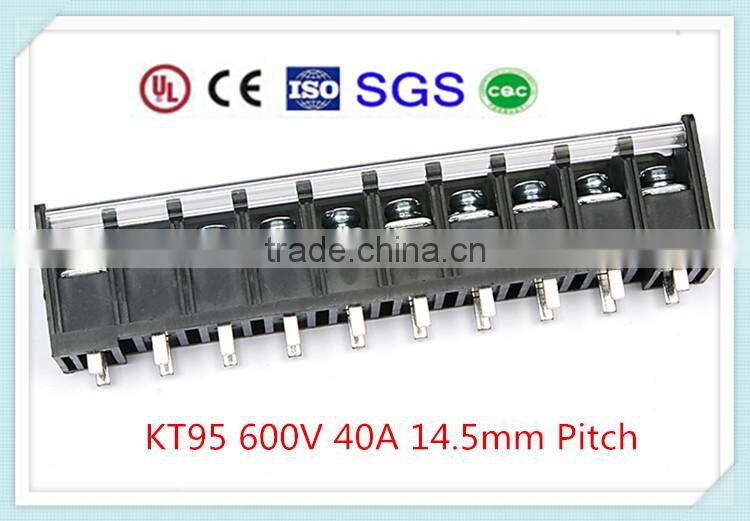

Tin Plated Brass Pin Barrier Screw Terminal Block KT95 14.5mm Pitch 600V 40A

Tin Plated Double Row Brass Pin Barrier Screw Terminal Block KT95 14.5mm

Pitch 600V 40A

Product Description

Barrier Terminal Block KT95

KT95 ISO9001:2000 CE CQC CUL SGS

1. Electrical Rating: 600V 40A

2. Pitch: 14.5mm

Materials

1. Plastic Housing: PBT, UL94V-0

2. Terminal: Brass, Tin plated

3. Terminal Number: 2P~16P

4. Screw: Cuprum, M5, Galvanization

Specifications

1. Usage Temperature: -40°c~+105°c

2. Transient Temperature: +500°c

3. Withstanding Voltage: AC2500V at 1 minute

4. Wire Range: 8~22AWG

5. Torque: 22lb-in

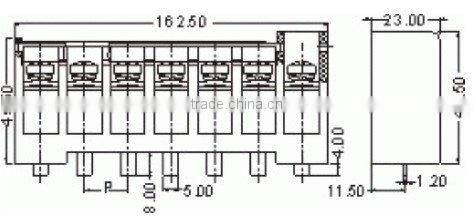

KT95 Drawing:

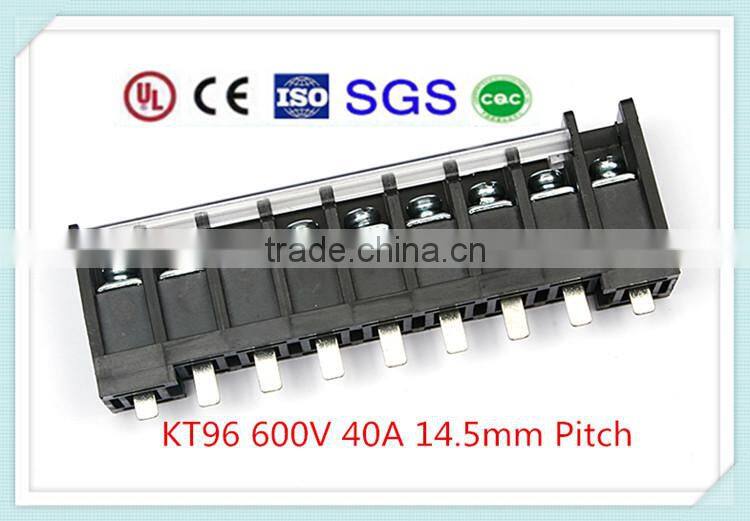

Tin Plated Brass Pin Barrier Screw Terminal Block KT96 14.5mm Pitch 600V 40A

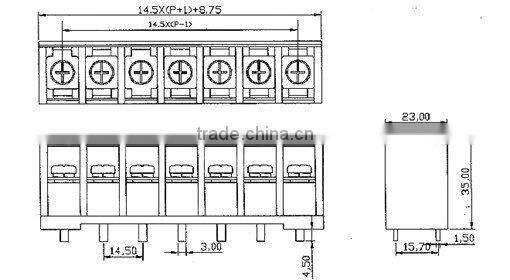

KT96 Drawing:

2 Row Terminal Block 2KDS, 300V 10A 7.62/7.0/9.525mm Pitch

High Current Barrier Screw Terminal Block KT8 Series 300/600V 115/170/65/5030/20A,

Pitch: 8.5/11/13/16/21/27mm

Barrier Terminal Block KT9, 600V 40A 13mm Pitch, 400V 30A 11mm Pitch

Din Rail Terminal Block KDT Series, 600V 15/25/50/60/100/150/200/300A

Tin Plated Brass Pin Barrier Screw Terminal Block KT96 14.5mm Pitch 600V 40A

Tin Plated Double Row Brass Pin Barrier Screw Terminal Block KT95 14.5mm

Pitch 600V 40A

Tin Plated Double Row Brass Pin Barrier Screw Terminal Block KT95 14.5mm

Pitch 600V 40A
