4 Gigabit Bay Trail SOC J1800 MINI ITX 4 LAN Motherboard for Firewall Router
- FOB ShenZhen
 - T/T Credit Card PayPal

You May Like
-


4 Ethernet Ports Motherboard J1900 Fanless J1900 2.5' HDD Inboard With BYPASS Supported/ High Performance Router Motherboard
 -


Server Motherboard Fanless Bay Trial Platform Quad Core J1900 and USB3.0 Fanless Mini ITX 4 LAN Ports Motherboard
 -


Intel B75 LGA1155 Firewall Mainboard Mini Itx Motherboard With 6 LAN H67SL
 -


Firewall Industrial Motherboard B75 LGA 1155 Socket Motherboard B75SL With With 6 Lan,2*bypass,4*SATA,1*MSATA
 -


Intel G41 Firewall Motherboard With 6 Gigabit Lan 1U Firewall Motherboard
 -


Firewall Motherboard G41XE VER:1.1 With Bypass Function G41 6*rj45 Ethernet Soft Router Mainboard

Product Details
| Products Status | Stock | Application | Desktop | |
| Chipset Manufacturer | Intel | Form Factor | Mini-ITX | |
| Memory Type | DDR3 | Graphics Card Type | Integrated | |
| Brand Name | INCTEL | Model Number | M8F | |
| Place of Origin | Guangdong, China |
Product Description

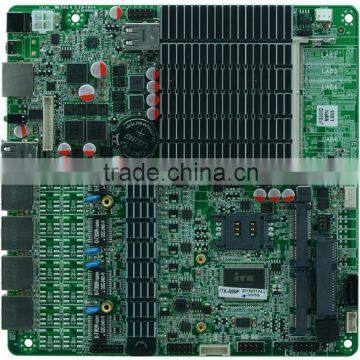

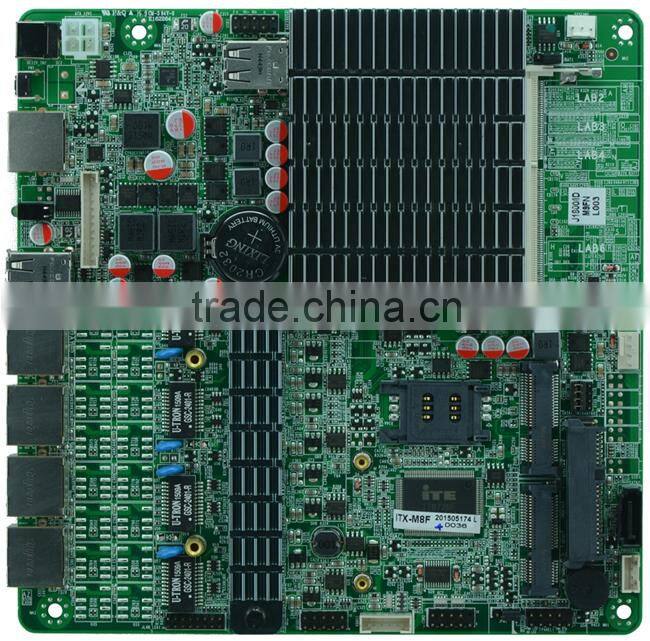

1. M8F VER: 1.1 front view
Integrated Intel® J1800 dual-core 2.41GHz processor is based on Intel® Bay trail SOC platform, CPU integrated support DDR3 notebook memory

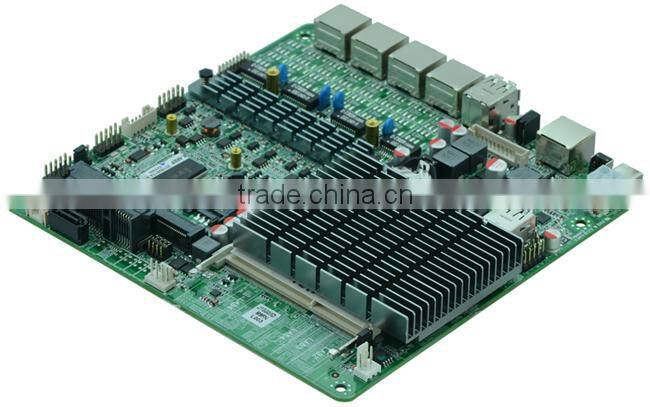

2. M8F VER: 1.1 IO front view
       Integrated Intel® HD Graphics graphics core supports VGA display output

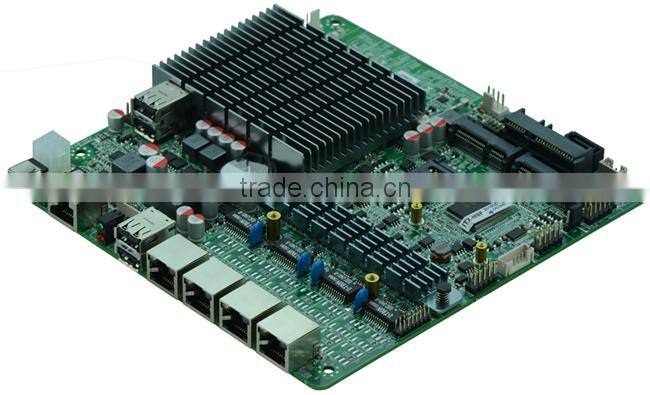

3. M8F VER: 1.1 IO front view
        Integrated four Intel® 82583V Gigabit LAN chip supports Wake on LAN / PXE function support WIFI / 3G / SSD / 4 USB / 2 x COM
1 * 2.5-inch notebook hard drives can be directly installed hard disk 1 * SATA hard disk interface (2.5-inch hard drive with a second election) board DC power supply
Model No.  | ITX-M8F VER:1.1  |
Processor  | Intel® Dual Core J1800 22nm processor 2.41GHz, compatible with Intel® Bay Trail -I/M/D series CPU  |
Chipset  | Intel® Bay trail SOC , CPU integrates chipset  |
Memory  | 1* DDR3 SODIMM,supports 1333/1066 MHz , Max. 8GB  |
Graphics  | Intel® HD Graphics  |
Expansion Slot  | 1* mSATA slot  |
  | 1* Mini-PCIE slot (supports WIFI / 3G module)  |
Ethernet  | 4*Intel 82583V Gigabit LAN controllers , supports Wake-On-LAN  |
  | Supports 2 pair of BYPASS  |
Storage  | 1* 2.5’ HDD Space,supports HDD inboard 1* SATA (alternative to 2.5’ hard disk ) 1* mSATA slot (support SSD )  |
  | 1* mSATA slot (supports SSD)  |
Rear I /O  | 1* 12V~19V DC JACK input  |
  | 1* Power switch  |
  | 1* serial port CISCO standard port  |
  | 1* LED(POWER LED/HDD LED)  |
  | 2* USB2.0 ports  |
  | 4* RJ-45 ports  |
Internal I/O Connector  | 1* VGA connector (1*12pin)  |
1* LAN LED connector(2*8pin)  | |
1* serial port PIN header for RS232  | |
4* USB 2.0 PIN header  | |
1* FP1 pin header(2*5pin Front panel buttons and indicator connector)  | |
1* ATX 4pin power connector (for 12V~19V input/output)  | |
1* PS/2 KB & MS Connector  | |
1* SATA Power Connector  | |
1* SIM slot  | |
Fan Connector  | 1* 4PIN CPU Fan , 1* 3PIN system Fan connector  |
GPIO  | 4-bit input/output connector  |
BIOS  | AMI 32Mb Flash ROM  |
Watchdog Timer  | System reset ,Programmable L256 , 0 ~ 255 sec/min  |
Power Type  | Single voltage 12V~19V DC Input  |
Operating Temp.  | -10°C~ 60°C  |
No-Operating Temp.  | -20°C~ 70°C  |
Humidity  | 5-95% (relative humidity; non-condensing)  |
Dimension  | 170mm x 170mm  |
