Home > Products > Motherboard > N70SL 6 Intel 82583V Gigia NM70 Chipset Intel1037U 2 COM 6 LAN Firewall Motherboard
N70SL 6 Intel 82583V Gigia NM70 Chipset Intel1037U 2 COM 6 LAN Firewall Motherboard
- 30000 Piece / Pieces per Month
- Credit Card PayPal
You May Like
-
NM70SL_O 4RJ45 2*SFP 1037u Network Router Mainboard Network Security Motherboard
-
1037U Firewall Motherboard,1U Rackmount router Server Firewall Motherboard
-
Industrial Firewall Motherbaord mini-itx d2550 motherboard for 6 lan ports D25SL
-
Intel firewall motherboard ITX-M2F Router Board D2550 mini-itx motherboard for 4 lan 1U firewall appliance
-
D525 Firewall Mainboard 4 gigabit PCIE ethernet ports atom motherboard with BYPASS
-
ITX-M5F Mini itx Motherboard with 4 LAN Atom D525 Firewall Motherboard
Product Details
| Products Status | Stock | Chipset Manufacturer | Intel | |
| Form Factor | Mini-ITX | Memory Type | DDR3 | |
| Graphics Card Type | Integrated | Brand Name | INCTEL | |
| Model Number | N70SL | Place of Origin | Guangdong, China |
Product Description

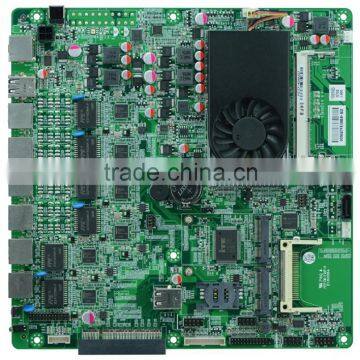

1. N70SL VER: 1.1 front view
Onboard Intel® 1037U Dual Core 1.80GHZ processor Intel®NM70 Express chipset supports DDR3 generation notebook memory
2. N70SL VER: 1.1 IO front view
Integrated Intel® HD 2500 graphics core supports VGA display output
3. N70SL VER: 1.1 side view
Integrated Intel®6 * 82583V Gigabit LAN chip supports Wake on LAN / PXE function
It has two SATA ports / 1 CF slot / 1 SSD / 1 WIFI and 3G / 2COM mouth / 6 USB / 1 LPT printer port
Model NO. | N70SL VER:1.1 |
CPU | Intel® 1037U dual core 22nm processor 1.8GHz TDP 17W |
Chipset | Intel® NM70 Chipset |
Memory | 1* dual channel SO DDRⅢ 1333/1066MHz, Max. up to 8GB |
Graphics | Intel® HD2500 Graphics, support VGA display output |
Expansion Slots | 1* PCI-E 8X, can be extended Optical interface module/Electrical interface module |
1* Mini-PCIE, support WIFI/3G , is alternative with PCI-E 8X when using | |
LAN | 6* Intel® 82583V 10/100/1000Mbps Ethernet |
Support Wake-on-LAN and PXE function | |
Storage | 2* SATAⅡ 3Gbps |
1* CF card | |
1* MSATA , support SSD/3G module | |
Rear I/O | 1* COM(CISCO standard interface) |
2* USB 2.0 | |
6* RJ-45 LAN | |
1* POWER | |
1* LED1(POWERLED/HDDLED) | |
Internal I/O
| 1* LAN_LED 2*13pin |
1* JVGA 2*5pin | |
1* LPT | |
1* RS232 | |
1* PS/2 | |
4* USB 2.0 | |
1* FP1 (2*5pin Front panel buttons and LED connected) | |
2* PWROUT (Hard drive power connector) | |
Fan interface | 1* CPUFAN 4pin, 1* SYSFAN 3pin |
GPIO | 1* GPIO (Support 4-way GPIO function) |
BIOS | AMI 16MB DPI Flash ROM |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Power Input | DC_12V Single power supply |
Operating Temp. | -10°C~ 60°C |
Storage Temp. | -20°C~ 70°C |
Humidity | 5%-95%(relative humidity; non-condensing) |
Dimension | 220mm x 220mm |
