Mini ITX Industrial Motherboard 1037U 22nm Dual VGA Wide Voltage 17W I3-grade DDR3 Voltage 8V to 36V Recommended 9V ~ 24V 2G RAM

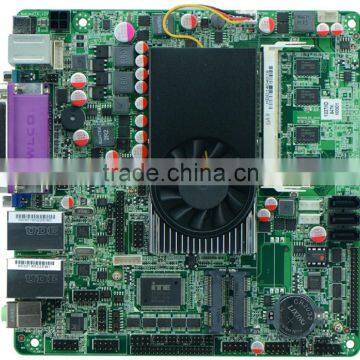

1. ITX-M847_D102 VER 2.0 front view
          Onboard Intel® 1037U Dual Core 1.80GHZ processor Intel® NM70 Express chipset supports DDR3 generation notebook memory

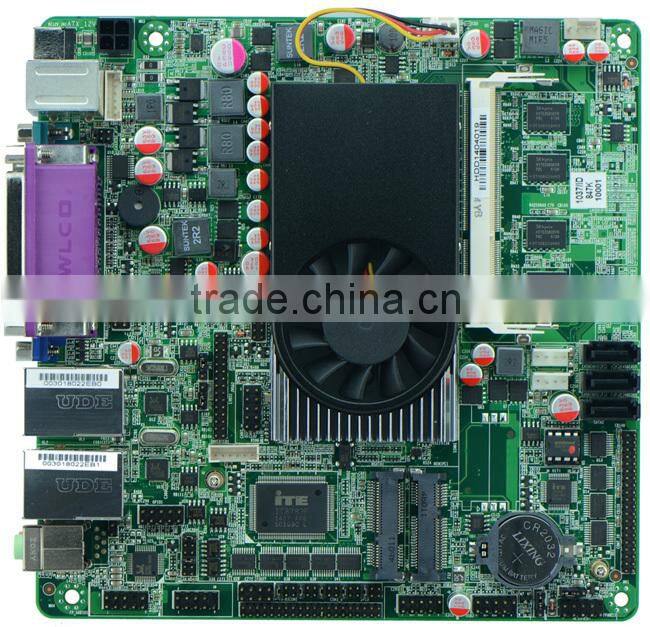

2. ITX-M847_D102 VER 2.0 IO front view
         Intel®HD Graphics integrated graphics core supports VGA / HDMI / Dual 24BIT LVDS synchronous / asynchronous display support 1080P HD playback

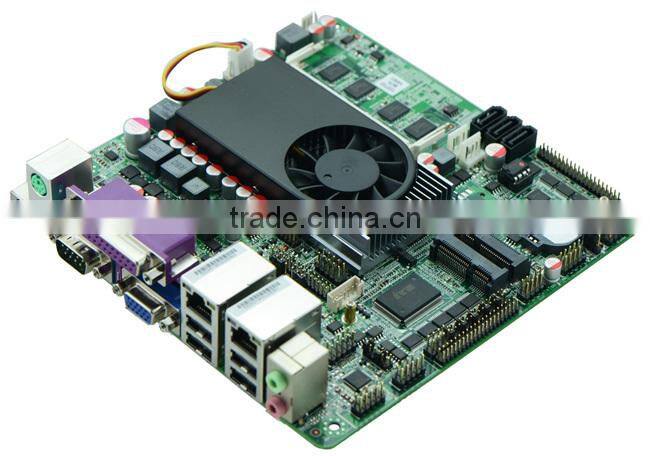

3. ITX-M847_D102 VER 2.0 side view
       Integrated 2 RTL8111E Gigabit Ethernet supports Wake on LAN / PXE function support WIFI / 3G module / SSD Solid State Drive / 8 USB / 10 COM ports

Integrated six-channel Realtek ALC662 HD Audio controller supports MIC / Line-out motherboard supports 9V ~ 24V DC power supply voltage input

Product number
ITX-M847_D102 VER 2.0
CPU
Onboard Intel®1037U dual core 1.8GHZ processor TDP of 17W
Chipset
Using Intel® NM70 Express Chipset
RAM
Supports dual-channel memory, high-speed DDR3 2GB onboard memory up onboard capacity of up to 8GB

Providing 1 * SO DDRIII memory slot supports up to 8GB memory 1333/1066
Display Function
Integrated Intel® HD Graphics graphics core

Provide 2 * VGA / 1 * HDMI / 1 * Dual 24-bit LVDS display output

And can be any combination of dual display
Expansion slots
1 * Mini-PCIE slot supports WIFI / 3G module (default is WIFI)

1 * MSATA slot supports SSD / WIFI SSD transfer speeds of up to 6Gbps (default SSD)
Network features
2 * RTL8111E Gigabit Ethernet supports Wake on LAN / PXE function
Memory function
3 * SATAII hard disk interface transfer rate up to 3Gbps
Audio features
Onboard Realtek ALC662 6-channel HD Audio support MIC / Line-out
Backplane I / O Interface
1 * 12V DC_JACK interface (supports 8 ~ 36V power supply is recommended to use 9 ~ 24V power supply)

1 * PS / 2 keyboard and mouse connectors

1 * DB9 COM port and having a first charging function 9PIN

1 * LPT printer port

1 * DB15 VGA Interface


2 * RJ-45 network interface
4 * USB2.0 Interface
1 * Audio I / O interfaces (microphone and line output)
Built-in I / O Interface
9 * RS232 serial port COM2 / COM3 function also supports 485/422

COM1 ~ 6 and having a first charging function 9PIN

1 * LVDS Interface (2 * 15pin) 24BIT LVDS panel support dual channel (dual 8) Show

1 * JHDMI Interface 2 * 8Pin

1 * JVGA1 interface can not and DB15 (VGA interface) use 2 * 5pin

1 * VGA2 interface with DB15 (VGA interface) use 2 * 5pin

4 * USB 2.0 Interface Mini-PCIE USB signal if support two USB

1 * AUDIO Front panel audio connector

1 * FP1 (2 * 5pin front panel function buttons and LEDs Interface)

1 * TX-RXCOM RS485 / 422 Interface 2 * 4Pin

1 * PS / 2 mouse and keyboard interfaces

1 * SIMM deck

1 * ATX_12V Interface (supports 8 ~ 36V power supply is recommended to use 9 ~ 24V power supply)

2 * PWROUT hard drive power connector
Fan Interface
1 * CPUFAN and SYSFAN 4pin
GPIO
It supports 4-way input and output GPIO
BIOS
AMI 32MB Flash ROM
Watchdog
Support for hardware reset function (256 0 to 255 seconds)
Power supply type
Support DC 8 ~ 36V power supply (recommended 9 ~ 24V power supply)
Operating temperature
-10 ℃ ~ 60 ℃
Storage temperature
-20 ℃ ~ 70 ℃
Working humidity
5% -95% relative humidity non-condensing
Size
170mm x 170mm
