Intel Atom D525 Industrial ITX Motherboard with LVDS

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port FOB ShenZhen
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Desktop
Chipset Manufacturer	Intel	Form Factor	Mini-ITX
Memory Type	DDR3	Graphics Card Type	Integrated
Brand Name	INCTEL	Model Number	ITX-M5S_D5L
Place of Origin	Guangdong, China

Product Description

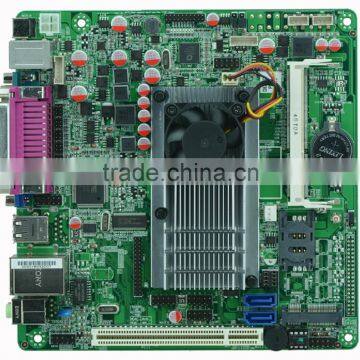

1. ITX-M5S_D5L VER: 1.0 front view
Integrated Intel® Atom D525 dual nuclear power plant thread 1.80G processor uses Intel NM10 Express chipset supports DDR3 notebook memory

2. ITX-M5S_D5L VER: 1.0 IO front view
Intel®GMA3150 integrated graphics core and support VGA and eight 24BIT LVDS synchronous / asynchronous display

3. ITX-M5S_D5L VER: 1.0 side view
Integrated a RTL8105E Fast Ethernet chip supports Wake on LAN support WIFI / SSD Solid State Drive / 8 USB / 5 COM ports

Integrated six-channel Realtek ALC662 HD Audio controller supports MIC / Line-out board DC12V power supply

Model NO.	ITX-M5S_D5L
CPU	Intel® Atom D525 Processor Dual core 1.80G
Chipset	Intel® NM70 Chipset
Memory	1* SO DIMM DDRIII 800/1066MHz, Max. up to 2GB
Graphics	Intel® GMA3150 Graphics
	Support 1LVDS,2VGA display output,Supports both synchronous and asynchronous
	LVDS supports single 24bit
Expansion Slots	1* PCI
Expansion Slots	1* Mini-PCIE (support WIFI/3G/SSD, jumper control interface swapping)
LAN	1* RTL8105E 10/100Mbps Ethernet, Support Wake-on-LAN and PXE function
Storage	2*SATAII (SATA2 SSD with a second election)
Audio	Integrated Realtek HD ALC662 for 6-Channel output
Audio	Support MIC/Line-out/Line-in
Rear I/O	1* 12V DC_JACK input
	1* PS/2
	1* LPT
	1* COM
	1* VGA
	1* RJ_45 LAN
	4* USB 2.0
	1* AUDIO I/O (MIC and Line-out)
Internal I/O	1* LVDS 2*10pin
	1* JVGA1 2*5pin
	1* JVGA2 2*5pin
	4* COM, the 9th pin supports +5V/+12V charged function
	1* PS/2
	4* USB 2.0
	1* AUDIO pin (Front Audio interface 2*5pin)
	1* FP1 (2*5pin Front panel buttons and LED connected)
	1* ATX_12V (Can be used as input and output 12V power connector)
	2* PWROUT (Hard drive power connector)
	1* LVDS1 1*6pin
	1* SIM
Fan interface	1* CPUFAN and SYSFAN 3pin
BIOS	AMI 8MB DPI Flash ROM
Watchdog	Support hardware reset function (L256, 0~255 seconds)
Power Input	DC_12VSingle power supply
Operating Temp.	-10°C~60°C
Storage Temp.	-20°C~70°C
Humidity	0%-95%(relative humidity; non-condensing)
Dimension	170mm x 170mm
