Manufacturers of mini itx htpc slim motherboard DC12V 1037U 17W Queue motherboard M18_D2 22nm 17W i3-grade DDR3 MSATA SSDs 2COM

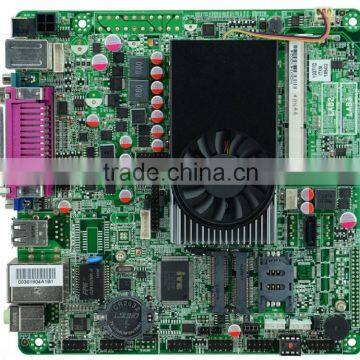

1. ITX-M18_D2 VER: 1.2A front view
          Integrated Intel®1037U 1.80GHZ dual-core dual-threaded processor with Intel® NM70 Express chipset to support DDR3 generation notebook memory

2. ITX-M18_D2 VER: 1.2A IO front view
          Integrated Intel® HD Graphics graphics core supports VGA / HDMI / Dual 24BIT LVDS synchronous / asynchronous display support 1080P HD playback

3. ITX-M18_D2 VER: 1.2A side view
          Integrated 1 * RTL8111E Gigabit Ethernet supports Wake on LAN / PXE function support WIFI / 3G module / SSD Solid State Drive / 8 USB / 2 COM ports

Integrated six-channel Realtek ALC662 HD Audio controller supports MIC / Line-out board DC12V power supply

Product number
ITX-M18_D2 VER: 1.2A
CPU
Onboard Intel®1037U 1.80GHZ dual-core dual-threaded processor TDP of 17W
Chipset
Using Intel® NM70 Express Chipset
RAM
Single Channel SODDRIII 1333/1066 memory slot supports up to 8GB
Display Function
Integrated Intel® HD Graphics graphics core

24BIT LVDS output provides dual-channel VGA HDMI

Support HDMI / VGA synchronous and asynchronous

Support LVDS / VGA synchronous and asynchronous

Supports LVDS / HDMI synchronous and asynchronous
Expansion slots
1 * Mini-PCIE slot (support WIFI / 3G module)

1 * MSATA slot (supports SSD / WIFI, SSD transfer speeds of up to 6Gbps)
Network features
1 * RTL8111E Gigabit Ethernet (PXE Support WOL function)
Memory function
1 * SATAII hard disk interface (transfer rate up to 3Gbps)
Audio features
Onboard Realtek ALC662 6-channel high definition audio support MIC Line-out
Backplane I / O Interface
1 * 12V DC_JACK input

1 * PS / 2 keyboard and mouse connectors

1 * DB9 RS232 serial port charging function first 9PIN

1 * LPT printer port

1 * DB15 VGA Interface


1 * RJ-45 network interface
4 * USB2.0 Interface
1 * Audio I / O interfaces (microphone and line output)
Built-in I / O Interface
1 * RS232 serial port

1 * LVDS Interface 2 * 15pin (supports dual channel 24BIT LVDS screen)

1 * HDMI Interface 2 * 8Pin

1 * VGA1 interface signal DB15 with 2 * 5pin

4 * USB2.0 Interface

1 * AUDIO Interface

1 * FP1 2 * 5pin (front panel function buttons and LEDs Interface)

1 * PS / 2 mouse and keyboard interfaces 1 * 6Pin

1 * SIM card connector

1 * ATX_12V (do + 12V input and output)

2 * PWROUT (hard disk power connector)
Fan Interface
1 * CPUFAN and SYSFAN 4pin
GPIO
It supports 4-way input and output GPIO
BIOS
AMI 32MB Flash ROM
Watchdog
Support for hardware reset function (256, 0 to 255 seconds)
Power supply type
DC_12V single supply
Operating temperature
-10 ℃ ~ 60 ℃
Storage temperature
-20 ℃ ~ 70 ℃
Working humidity
5% to 95% relative humidity, non-condensing
Size
170mm x 170mm
