ATOM D525 dual-core 6 Gigabit Ethernet board ROS motherboard

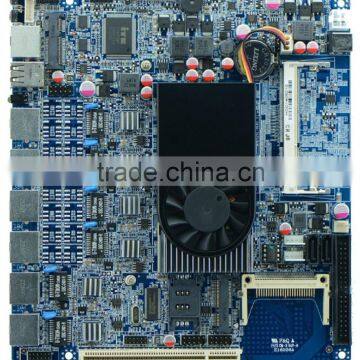

1. D52SL VER: 1.2 front view
          Onboard Intel® Atom D525 dual-core 1.8Ghz processor with Intel® ICH8M Express chipset supports DDR3 notebook memory

2. D52SL VER: 1.2 IO front view
       Integrated Intel® GMA3150 graphics support VGA display output

3. D52SL VER: 1.2 side view
        Integrated 6 Intel® 82583V Gigabit LAN chip supports Wake on LAN / PXE function support WIFI / 3G / SSD / 6  USB / 2 x COM

It has two SATA / 1 CF card / an IDE motherboard power supply DC12V

Product number
D52SL VER: 1.2
CPU
Onboard Intel® Atom D525 dual-core 1.8Ghz processor
Chipset
Using Intel® ICH8M Express Chipset
RAM
1 * SO DDR3 slots (support 800/1066 memory maximum support 2GB)
Display Function
Built-in VGA graphics support Intel® GMA3150 display output
Expansion slots
1 * MPCIE slot (supports USB WIFI / 3G module)

1 * MSATA slot (supports SSD hard drive / USB WIFI)

1 * PCI slots
Network features
Integrated 6 Intel® 82583V Gigabit LAN chip supports Wake on LAN / PXE function
Memory function
2 * SATAⅡ hard disk interface

1 * CF card slot

1 * IDE hard disk slot
Backplane I / O Interface
1 * COM (CISCO standard interface)

2 * USB2.0 Interface

6 * RJ-45 network interface

1 * POWER (Power switch)

1 * RESET (reset switch)

1 * LED1

1 * 12V DC_JACK input interface
Built-in I / O Interface
1 * JVGA Interface (1 * 12pin)

2 * LAN_LED Interface (2 * 6pin)

4 * USB2.0 Interface

1 * RS232 connector

1 * FP1 front panel function buttons and LEDs Interface

1 * PS / 2 keyboard and mouse interface

1 * ATX_12V (do + 12V input and output power interface)

2 * PWOUT hard drive power connector
Fan Interface
1 * CPUFAN and SYSFAN
GPIO
It supports 4-way input and output GPIO
BIOS
AMI 8MB DPI Flash ROM
Watchdog
An on-chip: 256 0 ~ 255 seconds watchdog function
Power supply type
Single power supply DC12V
Operating temperature
-10 ℃ ~ 60 ℃
Storage temperature
-20 ℃ ~ 70 ℃
Working humidity
5% -95% relative humidity non-condensing
Size
200mm x 180mm
