NM70SL_O 4RJ45 2*SFP 1037u Network Router Mainboard Network Security Motherboard
- 30000 Piece / Pieces per Month
- Credit Card PayPal
You May Like
-
1037U Firewall Motherboard,1U Rackmount router Server Firewall Motherboard
-
Industrial Firewall Motherbaord mini-itx d2550 motherboard for 6 lan ports D25SL
-
Intel firewall motherboard ITX-M2F Router Board D2550 mini-itx motherboard for 4 lan 1U firewall appliance
-
D525 Firewall Mainboard 4 gigabit PCIE ethernet ports atom motherboard with BYPASS
-
ITX-M5F Mini itx Motherboard with 4 LAN Atom D525 Firewall Motherboard
-
ATOM D525 dual-core 6 Gigabit Ethernet board ROS motherboard
Product Details
| Products Status | Stock | Chipset Manufacturer | Intel | |
| Form Factor | Mini-ITX | Memory Type | DDR3 | |
| Graphics Card Type | Integrated | Brand Name | INCTEL | |
| Model Number | NM70SL_O | Place of Origin | Guangdong, China |
Product Description

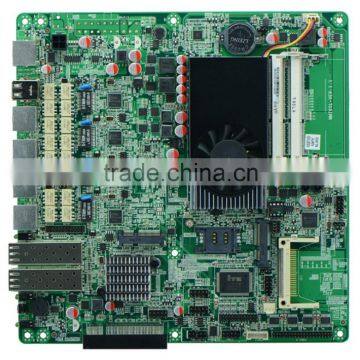

1. NM70SL_O VER: 1.1 front view
Onboard Intel®1037U 1.80GHZ dual core processor Intel®NM70 Express Chipset supports notebook memory
2. NM70SL_O VER: 1.1 IO front view
Integrated Intel® HD Graphics graphics core supports VGA display output
3. NM70SL_O VER: 1.1 side view
Integrated Intel 4 * 82574L Gigabit Ethernet chips and 2 * NH82580EB gigabit optical port supports Wake on LAN / PXE function
It has 2 * SATA port / 1 * CF slot / 1 * SSD / 1 * WIFI and 3G / 6 USB / 6 COM ports / LPT printer
Model NO. | NM70SL_O VER :1.1 |
CPU | Intel® 1037U dual core 22nm processor 1.8GHz TDP 17W |
Chipset | Intel® NM70 Chipset |
Memory | 2* dual channel SO DDRⅢ 1333/1066MHz, Max. up to 16GB |
Graphics | Intel® HD Graphics, support VGA display output |
Expansion slots | 1* PCI-E 8X, can be extended Optical interface module/Electrical interface module |
| 1* Mini-PCIE, support WIFI/3G |
LAN | 2* Intel® NH82580EB Gigabit optical interfaces |
| 4* Intel® 82574L 10/100/1000Mbps Ethernet |
| Support Wake-on-LAN and PXE function , support 2 groups of BYPASS function. |
Storage | 2* SATAⅡ 3Gbps |
| 1* CF card(cannot be used with SSD at the same time) |
| 1* MSATAIII 6Gbps |
Rear I/O | 1* COM(CISCO standard interface) |
| 2* USB 2.0 |
| 4* RJ-45 LAN |
| 2* Fiber socket |
| 1* POWER |
| 1* LED1(POWERLED/HDDLED) |
| 2* SFPLED |
Internal I/O | 1* LAN_LED 2*13pin |
| 1* JVGA 2*5pin |
| 1* LPT |
| 5* RS232 , COM2 supports RS422/485 |
| 1* TX-RXCOM RS422/485 |
| 1* PS/2 |
| 4* USB 2.0 |
| 1* FP1 (2*5pin Front panel buttons and LED connected) |
| 2* PWROUT (Hard drive power connector) |
Fan interface | 1* CPUFAN 4pin, 1* SYSFAN 3pin |
GPIO | 1* GPIO (Support 4-way GPIO function) |
BIOS | 32MB SMT Flash ROM |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Power Input | DC_12V Single power supply |
Operating Temp. | -10°C~60°C |
Storage Temp. | -20°C~70°C |
Humidity | 0%-95%(relative humidity; non-condensing) |
Dimension | 220mm x 220mm |
