D525 Firewall Mainboard 4 gigabit PCIE ethernet ports atom motherboard with BYPASS
- 30000 Piece / Pieces per Month
- Credit Card PayPal
You May Like
-
ITX-M5F Mini itx Motherboard with 4 LAN Atom D525 Firewall Motherboard
-
ATOM D525 dual-core 6 Gigabit Ethernet board ROS motherboard
-
ATOM D525 6 Gigabit Ethernet network security firewall motherboard motherboard motherboard with flexible routing BAPASS
-
Atom D525 four Gigabit Ethernet routing software firewall motherboard M5V
-
Atom D425 POS board 5 RS232 Interface Mini ITX Motherboard
-
LGA1155 H61 6COM Industrial DVI display ATM machine / ACD Board M61
Product Details
| Products Status | Stock | Chipset Manufacturer | Intel | |
| Form Factor | Mini-ITX | Memory Type | DDR3 | |
| Graphics Card Type | Integrated | Brand Name | INCTEL | |
| Model Number | ITX-M5V_B | Place of Origin | Guangdong, China |
Product Description

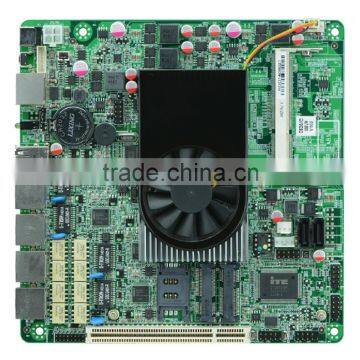

1. M5V_B VER: 1.1 front view
Onboard Intel® Atom D525 dual-core 1.8Ghz processor with Intel® ICH8M Express chipset supports DDR3 notebook memory
2. M5V_B VER: 1.1 IO front view
Integrated Intel® GMA3150 graphics support VGA display output
3. M5V_B VER: 1.1 side view
Integrated four Intel® 82583V Gigabit LAN chip supports a set BYPASS function supports Wake on LAN / PXE function support WIFI / 3G / SSD / 6 USB / 2 x COM
It has two SATA / 1 x PCI slot on the motherboard power supply DC12V
Model NO. | ITX-M5V_B VER:1.1 |
CPU | Intel Atom dual-core D525 Processor(1.8GHz) |
Chipset | Intel® ICH8M Chipset |
Memory | 1* SO DDRIII 1066/800MHz, Max. up to 2GB |
Graphics | Intel GMA3150 Graphics |
Expansion Slots | 1* PCI |
| 1* Mini PCIE(support 3G/ WIFI module ) |
LAN | 4* Intel 82583V 10/100/1000Mbps Ethernet,Support Wake-on-LAN function |
| Support 2 pair Bypass |
Storage | 2* SATAII(SATA2 and SSD with a second election) |
| 1*mSATA , Support SSD /USB WIFI |
Rear I/O | 1* 12V DC_JACK input |
| 1* POWER |
| 1* COM(CISCO standard interface) |
| 1* LED1(POWERLED/HDDLED) |
| 2* USB 2.0 |
| 4* RJ-45 LAN |
Internal I/O | 1* JVGA (2*5pin) |
| 1* LAN_LED (2*8pin) |
| 1* COM |
| 4* USB 2.0 |
| 1* FP1 (2*5pin Front panel buttons and LED connected) |
| 1* ATX_12V (Can be used as input and output 12V power connector) |
| 1* PS/2 |
| 1* PWROUT (Hard drive power connector) |
| 1*SIM |
Fan interface | 1* CPUFAN/SYSFAN Fan interface(3pin) |
GPIO | 1* GPIO (Support 4-way GPIO function) |
BIOS | AMI 8MB DPI Flash ROM |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Power Input | DC_12V Single power supply |
Operating Temp. | -10°C~60°C |
Storage Temp. | -20°C~70°C |
Humidity | 5%-95%(relative humidity; non-condensing) |
Dimension | 170mm x 170mm |
