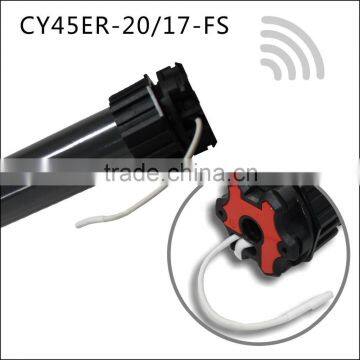

CY45ER-20/17-FS Tubular Motor

CY45ER-20/17-FS

Product Description:
CYER-Series: The motors in this series are suitable for 40’s, 60’s as well as 70’s octagonal shafts. This is possible due to the motors being available with a diameter of 35 mm and 45 mm. The CYER series has a built-in receiver and can be operated by CY emitters. The improved clippable motor head ensures a simple and speedy assembly. The anti-freezing protection function of the CYER series reacts, if during the upwards movement, the rollers encounter a strong opposing force e.g. if they freeze on the window sill. The tubular motor is maintenance-free with a long life span. Furthermore, the motor is also equipped with a thermal overload protection system as well as a silent motor.
Note:
No shaft connector or anti-lift locks are needed for the anti-freezing protection function.

Short introduction:
• Electronically (through built-in receiver) adjustable limits (without limit setting tool or cable)
• Easy control through CY’s diverse emitters  CY15026A, CY15030A, CY15032WA, CY15028A, CY15038A
• Permanent preservation of the end positions in case of power failure
• Anti-freezing protection: The motor automatically switches off, if the upwards movement is hindered
• Built-in receiver
• Simple and speedy assembly and setting of the end positions, ideal for industrial use
• 5 year warranty on faultless performance

Scope of supply:
• Tubular motor
• Pre-assembled adapter kit for octagonal shaft
• Adapter kit for round shaft 54 mm (only*FP/*FS models)
• English manual and assembly instructions
