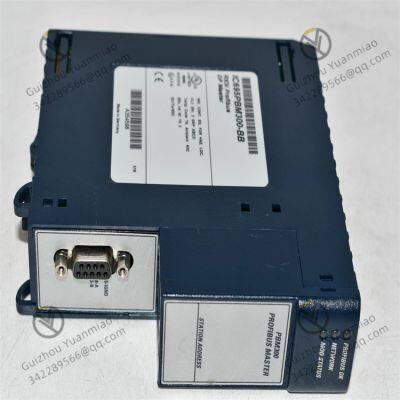

GE IC695PBM300 PROFIBUS DP Master Module

PROFIBUS Master Function: As the master of the PROFIBUS DP network, it can control and manage up to 125 DP slave devices on the network, realize communication with them, and coordinate data transmission and operations between various slaves.

Data Transmission and Acquisition: Each slave supports 244 bytes of input data and 244 bytes of output data, with a maximum support of 3584 bytes of input data and 3584 bytes of output data. It can efficiently collect slave data and transmit control instructions to the slaves.

Support for Multiple Data Rates: It supports various standard data rates such as 9.6kbit/s, 19.2kbit/s, and 93.75kbit/s, which can be flexibly selected according to actual application scenarios and requirements to adapt to different communication distances and data transmission requirements.

Support for Synchronization and Freeze Modes: It can enter synchronization and freeze modes, which are used to ensure data consistency and stability under specific circumstances, such as playing an important role in scenarios where multiple devices need precise synchronization for collaborative work.

DP-V1 Function Support: It supports DP-V1 read, write, and alarm messages, expands functional support for intelligent slave devices, and enables more complex device control and diagnostic functions.

Status Indication and Diagnostics: It is equipped with three LED indicators that comply with PROFIBUS standards. The green OK LED indicates the power supply and backplane reset status, the dual-color network LED indicates the network status, and the dual-color module status LED indicates the module's own status. This allows users to quickly understand the working status of the module and promptly detect and resolve communication issues.

Communication Port: Equipped with one RS485 PROFIBUS master port, which connects to the bus cable through a 9-pin Sub-D connector to achieve physical connection with the PROFIBUS DP network.

Power Requirements: The power supply is 3.3V DC, and the backplane current consumption is 440mA.

Operating and Storage Temperatures: The operating temperature range is 0℃ to 60℃, and the storage temperature range is -40℃ to 85℃. It adapts to a wide temperature range and can meet the usage requirements of different industrial sites.

Protocol Support: Supports the PROFIBUS DP protocol to ensure compatibility with various slave devices that comply with the PROFIBUS DP standard.

Industrial Automation: In industrial automation production lines such as automobile manufacturing, mechanical processing, and electronic equipment production, it is used to connect various automation devices, such as robots, CNC machine tools, and conveyor belts, to realize collaborative work and data sharing between devices, and improve production efficiency and quality.

Process Control: In process control fields such as chemical industry, petroleum, and electric power, it can connect various sensors, actuators, and controllers to achieve precise control and monitoring of process variables such as temperature, pressure, flow, and liquid level, ensuring the stable operation of the production process.

Distributed Control Systems: It is used to build distributed control systems, connecting multiple scattered controllers together to realize centralized management and decentralized control of the entire system, and improve the reliability and scalability of the system.
