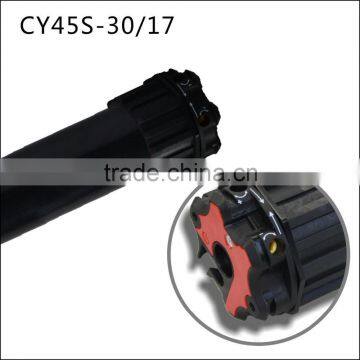

CY45S-30/17 Tubular Motor

CY45S-30/17

Product Description:

CYS-Series:The motors in this series are suitable for 40’s, 60’s as well as 70’s octagonal shafts. This is possible due to the motors being available with a diameter of 35 mm and 45 mm. The improved clippable motor head ensures a simple and speedy assembly and is suitable for industrial use. Furthermore, the tubular motor is maintenance-free with a long life span and is equipped with a thermal overload protection system. The ease of mechanical limit setting combined with the silent running of the motor makes this model really successful.

Short introduction:

• Easy mechanical setting of the limits on the motor head with setting screws and permanent preservation of the limits in case of power failure

• Simple and speedy assembly through clippable motor head

• Maintenance-free with a long life span

• Thermal overload protection

• 5 year warranty on faultless performance

• Silent running

• A retrofit with the various emitter from CY is also possible

•Also available with a reduced length (item no.: CY45Ss-10/13)

Scope of supply:

• Tubular motor

• Pre-assembled adapter-kit for octagonal shaft

• Limit setting tool

•English manual
