Home > Products > Tubular Motor > CY45M-50/13 Tubular Motor

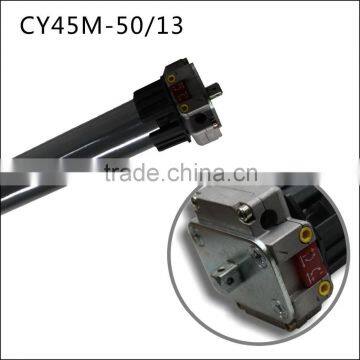

CY45M-50/13 Tubular Motor
- 0 per Month
- T/T
You May Like
Product Details
| Brand Name | OEM | Model Number | CY45M-50/13 | |
| Frequency | 50HZ | Output Power | 244 W | |
| Protect Feature | Other, IP44 | Certification | CE, ROHS, Other, CE, ROHS, TUV | |
| AC Voltage | Other, 230 V | Place of Origin | China |
Product Description
CY45M-50/13
| MODEL NO. | RATED TORQUE | RATED RPM | MOTOR DIAMETER | RATED VOLTAGE | RATED WOWER | RATED CURRENT | IP CLASS |
| CY45M-50/13 | 50 NM | 13 MIN-1 | 45 MM | 230 V | 244 W | 1,06 A | IP44 |
Product Description:
CYM – Series: The motors in this series are suitable for 60’s and 70’s octagonal shafts as well as 78’s round shafts (for instance for awnings). They can be operated through a hand crank (optional accessory) in the case of power failure. All the motors in this series are maintenance-free with a long life span and are equipped with a thermal overload protection system.
Short introduction:
• Easy mechanical setting of the limits on the motor head with setting screws and permanent preservation of the limits in case of power failure
• Hand crank in case of power failure
• Simple and speedy assembly
• Maintenance-free with a long life span
• Thermal overload protection
• 5 year warranty on faultless performance
• Silent running
• A retrofit with the various emitter from CY is also possible
Scope of supply:
• Tubular motor
• Pre-assembled adapter-set for octagonal shaft
• Universal bracket
• Splint
• Limit setting tool
• English manual
Optional accessory
Hand crank item no.: ERNK1450
