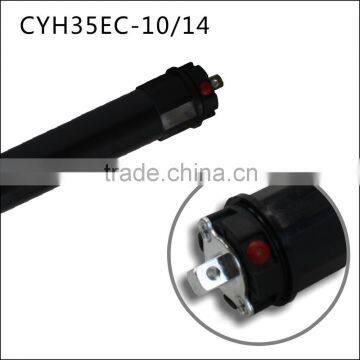

CYH35EC-10/14 Tubular Motor

CYH35EC-10/14

Product Description:

CYHEC – Series:The motors in this series are suitable for 40’s, 60’s as well as 70’s octagonal shafts. This is possible due to the motors being available with a diameter of 35 mm and 45 mm. Due to the fact that the limits of this tubular motor can be set up through either the set-up cable CY1501-E or on the motor head, any adjustment to them can be carried out quickly even after fitting the roller shutter motor, without having the need to open the roller box. The blockage resistance function reacts if during the upwards movement, the rollers encounter a strong opposing force e.g. if they freeze on the window sill. The tubular motor is maintenance-free with a long life span. Furthermore, the motor is also equipped with a thermal overloadprotection system as well as a silent motor.

Note:

No shaft connector or anti-lift locks are needed for the blockage resistance function.

Short introduction:

•Electronically adjustable limits, adjustable by using adjusting knob or set-up cable (no tools needed)

•Permanent preservation of the limits in case of power failure

•Blockage resistance: The engine automatically switches off, if the upwards movement is hindered. (E.g. by freezing in winter)

•Simple and speedy assembly and adjustment of the limits, ideal for industrial use

• 5 year warranty on faultless performance

•A retrofit with the various emitter from CY is also possible

Scope of supply:

•Tubular motor

•Pre-assembled adapter-kit for octagonal shaft

•Universal bracket

•Splint

•Limit setting tool

•English manual
