Home > Products > Tubular Motor > CYH45S-20/15 Tubular Motor

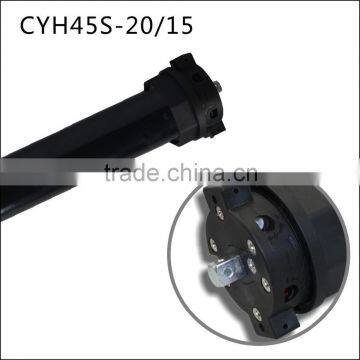

CYH45S-20/15 Tubular Motor
- 0 per Month
- T/T
You May Like
Product Details
| Brand Name | OEM | Model Number | CYH45S-20/15 | |
| Frequency | 50HZ | Output Power | 145 W | |
| Protect Feature | Other, IP44 | Certification | CE, ROHS, Other, CE, ROHS, TUV | |
| AC Voltage | Other, 230 V | Place of Origin | China |
Product Description
CYH45S-20/15
| MODEL NO. | RATED TORQUE | RATED RPM | MOTOR DIAMETER | RATED VOLTAGE | RATED WOWER | RATED CURRENT | IP CLASS |
| CYH45S-20/15 | 20 NM | 15 MIN-1 | 45 MM | 230 V | 145 W | 0,64 A | IP44 |
Product Description:
CYHS – Series: The motors in this series are suitable for 40’s or 50’s as well as 60’s or 70’s octagonal shafts. This is possible due to the motors being available with a diameter of 35 mm and 45 mm. The tubular motor is maintenance-free with a long life span and is equipped with a thermal overload protection system. The ease of mechanical limit setting combined with the silent running of the motor makes this model universally applicable.
Short introduction:
• Easy mechanical setting of the limits on the motor head with setting screws and permanent preservation of the limits in case of power failure
• Simple and speedy assembly
• Maintenance-free with a long life span
• Thermal overload protection
• 5 year warranty on faultless performance
• Silent running
• A retrofit with the various emitter from CY is also possible
cope of supply:
• Tubular motor
• Pre-assembled adapter-kit for octagonal shaft
• Universal bracket
• Splint
• Limit setting tool
• English manual
