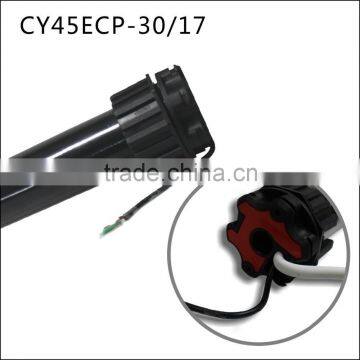

CY45ECP-30/17 Tubular Motor

CY45ECP-30/17

Product Description:

CYECP - SeriesDue to a diameter of 45 mm, the motor is suitable for 60’s and 70’s octagonal shafts. The improved clippable motor head ensures a simple and speedy assembly. The obstacle detection function stops the downward movement if an obstacle had been recognized by the motor. The anti-freezing protection function reacts, if during the upwards movement, the rollers encounter a strong opposing force e.g. if they freeze on the window sill. This in turn prevents damage to the roller shutters and the motor.The limits can be adjusted automatically or manually through an external button or through an external cable (CY1501-E)

Note:

Shaft connector or anti-lift locks are needed for the blockage recognition function. These hinder the upwards movement when an obstacle is identified. Stopper orangled rails are needed for the automatically adjustable limits. The obstacle detection function is not advisable for small windows or when multiple shutters are being utilised.

Short introduction:

• Electronically or automatically adjustable limits, adjustabl by  using adjusting knob or adjusting cable (no tools needed)

• Permanent preservation of the limits in case of power failure

• Anti-freezing protection (blockage resistance): The engine automatically switches off, if the upwards movement is blocked

• Obstacle detection: The engine automatically switches off, if an obstacle is identified during the downwards movement

• A retrofit with the various emitter from CY is also possible

• 5 year warranty on faultless performance

• A 70’s adapter with in conjunction with adapter CY15012 for faultless operating of the obstacle detection function (optional)

Scope of supply:

•Tubular motor

•Pre-assembled adapter-kit for octagonal-shaft

•Adapter-kit for round shaft 54 mm (only*FP/*FS models)

•English manual
