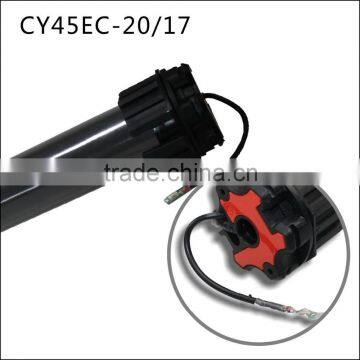

CY45EC-20/17 Tubular Motor

CY45EC -20/17

Product Description:
CYEC-Series: The motors in this series are suitable for 40’s, 60’s as well as 70’s octagonal shafts. This is possible due to the motors being available with a diameter of 35 mm and 45 mm. The improved clippable motor head ensures a simple and speedy assembly and is suitable for industrial use. Due to the fact that the limits of this tubular motor can be set up through either the set-up cable CY1501-E or on the motor head , any adjustment to them can be carried out quickly even after fitting the roller shutter motor, without having the need to open the roller box. The blockage resistance function reacts if during the upwards movement, the rollers encounter a strong opposing force e.g. if they freeze on the window sill. The tubular motor is maintenance-free with a long life span. Furthermore, the motor is also equipped with a thermal overload protection system as well as a silent motor.

Note:
No shaft connector or anti-lift locks are needed for the blockage resistance function.

Short introduction:
• Electronically adjustable limits, adjustable by using adjusting knob or adjusting cable (no tools needed)
• Permanent preservation of the limits in case of power failure
• Anti-freezing protection (blockage resistance): The engine automatically switches off, if the upwards movement is blocked
• Simple and speedy assembly through clippable motor head, ideal for industrial use
• 5 year warranty on faultless performance
• A retrofit with the various emitter from CY is also possible

Scope of supply:
• Tubular motor
• Pre-assembled adapter-kit for octagonal shaft
• Adapter-kit for round shaft 54 mm (only*FP/*FS models)
• English manual
