Home > Products > Tubular Motor > CYH45ER-20/17 Tubular Motor

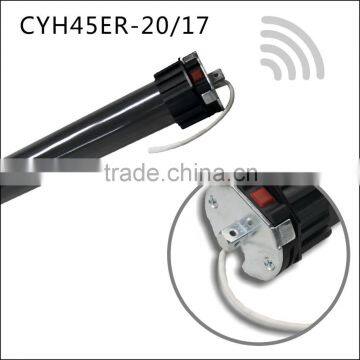

CYH45ER-20/17 Tubular Motor
- T/T
You May Like
Product Details
Brand Name | OEM | Model Number | CYH45ER-20/17 | |
Output Power | 203 W | Protect Feature | Other, IP44 | |
Certification | CE, ROHS, Other, CE, ROHS, TUV | AC Voltage | Other, 230 V | |
Place of Origin | China |
Product Description
CYH45ER-20/17
MODEL NO. | RATED TORQUE | RATED RPM | MOTOR DIAMETER | RATED VOLTAGE | RATED WOWER | RATED CURRENT | IP CLASS |
CYH45ER-20/17 | 20 NM | 17 MIN-1 | 45 MM | 230 V | 203 W | 084 A | IP44 |
Product Description:
CYHER – Series: The motors in this series are suitable for 40’s, 60’s as well as 70’s octagonal shafts. This is possible due to the motors being available with a diameter of 35 mm and 45 mm. The CYHER series has a built-in receiver and can be operated by CY emitters. The anti-freezing protection function of the CYHER series reacts, if during the upwards movement, the rollers encounter a strong opposing force e.g. if they freeze on the window sill. The tubular motor is maintenance-free with a long life span. Furthermore, the motor is also equipped with a thermal overload protection system as well as a silent motor.
Note:
No shaft connector or anti-lift locks are needed for the anti-freezing protection function.
Short introduction:
• Electronically (through built-in receiver) adjustable limits (without limit setting tool or cable)
• Easy control through CY’s diverse emitters CY15026A, CY15030A, CY15032WA, CY15028A, CY15038A
• Permanent preservation of the limits in case of power failure
• Anti-freezing protection: The motor automatically switches off, if the upwards movement is hindered (E.g. by freezing in
winter)
• Built-in receiver
• Simple and speedy assembly and setting of the end positions, ideal for industrial use
• 5 year warranty on faultless performance
Scope of supply:
• Tubular motor
• Pre-assembled adapter kit for octagonal shaft
• Universal bracket
• Splint
• English manual and assembly instructions
