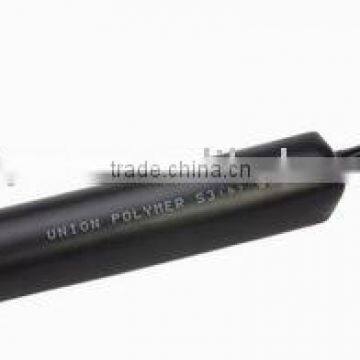

S3(h)Heavy-Wall Heat Shrink Tubing
- 0 per Month
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | justup | |
| Model Number | S3(h) | Type | Insulation Sleeving |
Product Description
Specifications
Voltage Class 1kV~36kV Ideal for insulation and mechanical protection of cable jointsVoltage Class 1kV~36kV
Ideal for insulation and mechanical protection of cable joints
Heavy wall heat shrinkable tubing with radiation cross-linked polyolefin outer layer for excellent insulation, corrosion prevention and adhesive inner layer for waterproof sealing and insulation.
Applications
·Insulation and environmental protection of cable joints
·Other applications where requires insulation and protection, sealing or cable jacketing
Features/Benefits
· High Shrink Ratio: 3:1 & 4:1
· Abrasion Resistant
· Optional flame retardant
·Also available without adhesive liner
Temperature Range
·Operating Temperature : -55 ºC ~ 90 ºC
·Shrink Temperature : 105 ºC ~ 135 ºC
Colour:Black
Certification
·Type certified by Det Norske Veritas (DNV)
·Type certified by CCS
Product Code Cross References
Raychem : WCSM / XCSM
DSG Canusa : CFW
LG : LG-PHWT
Technical Details
Test item | Test method | Typical value |
Tensile strength | ASTM D2671 | ≥ 12Mpa |
Break down elongation | ASTM D2671 | ≥ 400% |
Tensile strength after aging | ASTM D2671 | ≥ 12Mpa |
Break down elongation after aging | ASTM D2671 | ≥ 350% |
Water absorption | ASTM D570 | ≤ 0.5% |
Heat shock | 200 for 30 minutes | No drop/no flow |
Low temperature flexibility | -55 for 4 hours | No cracking |
Dielectric strength | ASTM D2671 | ≥ 15kV/mm |
Peel off strength to PEX | ASTM D2671 | ≥ 30N/cm |
Peel off strength to steel | ASTM D2671 | ≥ 30N/cm |
Product Selection
Product Code | Min. wall thickness after free recovery(mm) | Standard Length Per Piece (m) |
S3(H) -9/3 | 2.3 | 1.22 |
S3(H) -13/4 | 2.7 | 1.22 |
S3(H) -19/6 | 3.0 | 1.22 |
S3(H) -25/8 | 3.2 | 1.22 |
S3(H) -33/10 | 3.4 | 1.22 |
S3(H) -40/12 | 4.0 | 1.22 |
S3(H) -55/16 | 4.3 | 1.22 |
S3(H) -65/21 | 4.3 | 1.22 |
S3(H) -85/25 | 4.5 | 1.22 |
S3(H) -100/30 | 4.5 | 1.22 |
S3(H) -125/40 | 4.5 | 1.22 |
S3(H) -160/50 | 4.5 | 1.22 |
