BERGQUIST SP900S SIL PAD 900S AC SIL PAD TSP 1600S

Features and Benefits:


? Thermal impedance: ：0.61°C-in2/W(@50 psi)

? Electrically isolating

? Low mounting pressures

? Smooth and highly compliant surface

? General-purpose thermal interface material solution

The true workhorse of the SIL PAD  product family, SIL PAD900S AC (BERGQUIST SP900S AC)thermally  conductive insulation material

is designed for a wide variety of applications  requiring high thermal performance and electrical isolation.

These applications  also typically have low mounting  pressures for component?clamping.

BERGQUIST SIL PAD 900S AC (SIL PAD TSP 1600S AC)material combines a smooth and highly compliant surface  characteristic with

high thermalconductivity. These features optimize the thermal resistance properties at  low pressures.

Applications requiring low component  clamping forces include discrete semiconductors (TO-220, TO-247

 and TO-218) mounted with spring clips. Spring clips assist with quick assembly and apply a limited amount

of force to the semiconductor. The smooth surface texture of SIL PAD 900S minimizes interfacial thermal

 resistance and  maximizes thermal performance.

BERGQUIST SP900S AC Typical Applications Include:

? Power supplies

? Automotive electronics

? Motor controls

? Power semiconductors

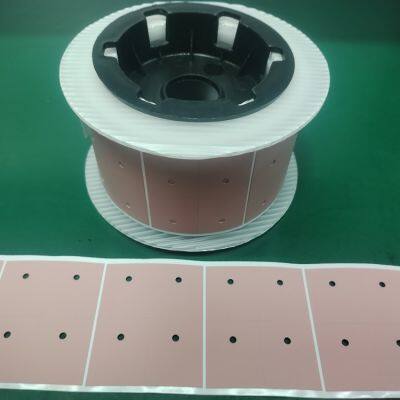

Configurations Available:

? Sheet form, die-cut parts and roll form

? With or without pressure sensitive adhesive
