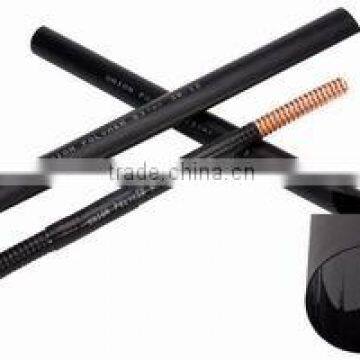

adhesive heat shrink sleeve
- DALIAN
- Credit Card
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S3n |
Product Description
Specifications
feeder cable heat shrink tubeSize from 8/2 to 210mm
Shrink ratio :2.5/1 3:1 even 4:1
Product Code Cross References
Raychem :TCS2
DSG Canusa : CFTV
Technical Details
Test item | Test method | Typical value |
Tensile Strength | ASTM D2671 | 12MPa |
Elongation | ASTM D2671 | 400% |
Specific Gravity | ASTM D792 | 1.2 |
Elongation after Heat Aging (168 hrs at 150) | ASTM D2671 | 350% |
Tensile strength after heat aging | ASTM D2671 | 12MPa |
Low Temperature Flexibility (4 hrs at -55) | ASTM D2671 | No cracking |
Hardness (Shore D) | ASTM D2240 | 60D |
Heat shock (4hrs at 200) | ASTM D2671 | No cracking or flowing |
Adhesive Softening Point | ASTM-E28 | 85 |
Adhesive Peel Strength to P.E. | ASTM D1000 | 110N/25mm |
Adhesive Peel Strength to Aluminum | ASTM D1000 | 80N/25mm |
Dielectric Strength | ASTM D2671 | 20kV/mm |
Volume Resistivity | ASTM D257 | 1014Ω.cm |
Copper Corrosion | ASTM D2671 | No Corrosion |
Water Absorption | ASTM D570 | 0.5% |
Fungus Resistance | ASTM G21 | No Growth |
Product Selection
Product Code | Min. wall thickness after free recovery(mm) | Standard Length Per Piece (m) |
S3(N) -φ8/2 | 1.7 | 1.22 |
S3(N) -φ9/3 | 1.7 | 1.22 |
S3(N) -φ12/4 | 2.0 | 1.22 |
S3(N) -φ16/5 | 2.2 | 1.22 |
S3(N) -φ19/6 | 2.5 | 1.22 |
S3(N) -φ28/9 | 2.5 | 1.22 |
S3(N) -φ33/10 | 2.5 | 1.22 |
S3(N) -φ40/12 | 2.5 | 1.22 |
S3(N) -φ50/16 | 2.7 | 1.22 |
S3(N) -φ65/19 | 2.8 | 1.22 |
S3(N) -φ75/22 | 3.0 | 1.22 |
S3(N) -φ85/25 | 3.0 | 1.22 |
S3(N) -φ95/25 | 3.0 | 1.22 |
S3(N) -φ100/30 | 3.0 | 1.22 |
S3(N) -φ115/34 | 3.0 | 1.22 |
S3(N) -φ125/40 | 3.0 | 1.22 |
S3(N) -φ140/42 | 3.0 | 1.22 |
S3(N) -φ150/45 | 3.0 | 1.22 |
S3(N) -φ160/50 | 3.0 | 1.22 |
S3(N) -φ180/60 | 3.0 | 1.22 |
S3(N) -φ210/70 | 3.0 | 1.22 |
S3(N) -φ225/75 | 3.0 | 1.22 |
S3(N) -φ260/85 | 3.0 | 1.22 |
