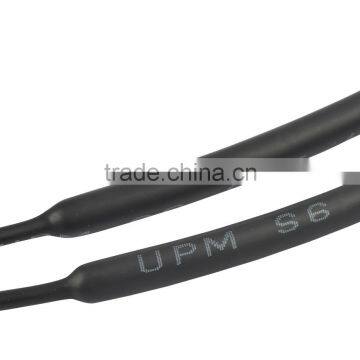

Diesel resistance elastomeric heat shrinkable tubing
USD $0.2 - $15
/ Meter
1000 Meters(Min.Order)
- 1000 Meter / Meters per Month
- Dalian
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | UPM | |
| Model Number | S6 | Type | Heat Shrinkable | |
| Material | PE |
Product Description
Specifications
1.Ideal for protection of cables,wiring harness and connectors2.Suitable for resistance to aviation and diesel fuels, hydrauli
1.Cross-linked specially formulated elastomeric compunds
2.Flexible, flame retardant
3.Excellent resistance to oil,diesel and hydraulic fluids.
4.RoHS and REACH compliant
Dimensions
| Reference | As supplied(mm) | After recovered(mm) | Standard length | |
| UPM S6 | ID min. | ID max. | WT nom. | m/spool |
| 2.4 | 2.4 | 1.2 | 0.51±0.08 | 200 |
| 3.2 | 3.2 | 1.6 | 0.76±0.15 | 100 |
| 4.8 | 4.8 | 2.4 | 0.84±0.15 | 100 |
| 6.4 | 6.4 | 3.2 | 0.89±0.15 | 100 |
| 9.5 | 9.5 | 4.8 | 1.02±0.20 | 50 |
| 12.7 | 12.7 | 6.4 | 1.22±0.20 | 50 |
| 19.1 | 19.1 | 9.5 | 1.45±0.28 | 30 |
| 25.4 | 25.4 | 12.7 | 1.78±0.28 | 30 |
| 38.1 | 38.1 | 19.1 | 2.41±0.41 | 30 |
| 50.8 | 50.8 | 25.4 | 2.79±0.41 | 25 |
| ID=Internal Diameter | WT=wall thickness | |||
| Technical Data | ||||
| Property | Test method | Values | ||
| Physical | Longitudinal shrinkage | ASTM D 2671 | ≤5% | |
| Tensile strength | ASTM D 2671 | ≥13 MPa | ||
| Breakdown elongation | ASTM D 2671 | ≥400% | ||
| Aging(150°C/168hrs) | Tensile strength | ASTM D 2671 | ≥12 MPa | |
| Breakdown elongation | ASTM D 2671 | ≥300% | ||
| Heat shock(215°C/4hrs) | ASTM D 2671 | No cracking | ||
| Low temperature flexibility(-75°C/4hrs) | ASTM D 2671 | No cracking | ||
| Electrical | Dielectric voltage Withstand | ASTM D 2671 | 2500V,60s No breakdown | |
| Volume resistivity | ASTM D 2671 | ≥1010 Ω.cm | ||
| Dielectric strength | ASTM D2671 | ≥16 KV/mm | ||
| Chemical | Flammability | ASTM D2671 | Self-extinguish in 60s | |
| Copper corrosion | ASTM D2671 | No corrosion | ||
| Fluids resistance (23°C/24hrs) | ||||
| Tensile strength | ASTM D2671 | ≥12 MPa | ||
| Breakdown elongation | ASTM D2671 | ≥300% | ||
| Dielectric strength | ASTM D2671 | ≥12 KV/mm | ||
