S2 Flexible highly flame retardant heat shrinkable tubing
- 3 Ton / Tons per Month
- Dalian China
- T/T
You May Like
-
Thin wall heat shrink tubing
-
S3(t) Polyolefin Flame retardant Thin Wall Heat Shrinkable Tubing(with adhesive)
-
S3(t) Polyolefin Flame retardant Thin Wall Heat Shrinkable Tube with adhesive
-
S2 Polyolefin Flexible highly flame retardant heat shrinkable tubing
-
S2(n) Polyolefin Halogen free heat shrink tubing
-
S3(t) Polyolefin Flame retardant Thin Wall Heat Shrinkable Tubing
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S2 | Type | Insulation Sleeving | |
| Material | Other, Composite Polymer, Polyolefin | Application | Low Voltage | |
| Rated Voltage | 1kV | Tensile Strength | 10.4Mpa |
Product Description
Specifications
Ideal for insulation,protection, wire bundling and cable markingFlexible, highly flame retardant heat shrinkable tubing. Ide

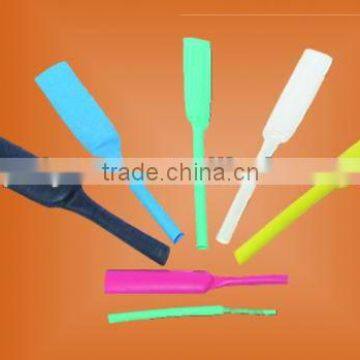

S2 Flexible highly flame retardant heat shrink tubing
Ideal for insulation,protection, wire bundling and cable marking
Flexible, highly flame retardant heat shrinkable tubing. Ideal for protecting and bundling of small harnesses, insulation of in-line splices, strain relief of wire connections, and color-coding wires, cables, terminals and electronic components
1.Shrink ratio 2:1, 3:1 and 4:1 available, providing easy installation even if there are large diameter differences between the cable and the connector
2.Ideal for protecting, insulating and bundling of small harnesses
3.Multiple colors available for identifying and color-coding wires, cables, terminals and components
4.Excellent flexibility
5.Certified by UL E236437
6.RoHS compliant
7.Flame retardant meets the UL 224 VW-1 standard
Operating temperature: -40°C to 125°C
Shrink temperature: 125°C
Color:
Red, blue, yellow, white, black, green and transparent
Cross references:
Raychem/Tyco: VERSAFIT
DSG Canusa: CPX876
Sumitomo: B2
3M: VPP876
LG: GSHS-1625LT
| Specification (mm) | Package (m/roll) | Specification (mm) | Package (m/roll) |
| φ0.6 | 200 | φ15 | 100 |
| φ0.8 | 200 | φ16 | 100 |
| φ1 | 200 | φ17 | 100 |
| φ1.5 | 200 | φ18 | 100 |
| φ2 | 200 | φ20 | 100 |
| φ2.5 | 200 | φ22 | 100 |
| φ3 | 200 | φ25 | 50 |
| φ3.5 | 200 | φ28 | 50 |
| φ4 | 200 | φ30 | 50 |
| φ4.5 | 100 | φ35 | 50 |
| φ5 | 100 | φ40 | 50 |
| φ5.5 | 100 | φ45 | 25 |
| φ6 | 100 | φ50 | 25 |
| φ7 | 100 | φ60 | 25 |
| φ8 | 100 | φ70 | 25 |
| φ9 | 100 | φ80 | 25 |
| φ10 | 100 | φ90 | 25 |
| φ11 | 100 | φ100 | 25 |
| φ12 | 100 | φ120 | 25 |
| φ13 | 100 | φ150 | 25 |
| φ14 | 100 | φ180 | 25 |
