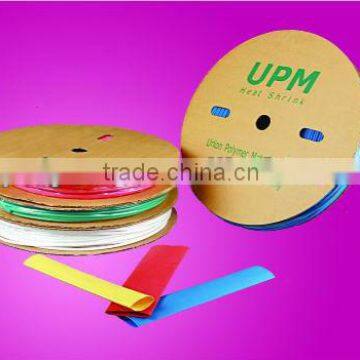

S2(n) Halogen free heat shrink tubing(Thin Wall)
- 3 Ton / Tons per Month
- Dalian China
- T/T
You May Like
-
UPM heat shrink S2(n) general purpose thin wall tubing
-
Polyolefine heat shrinkable thin wall tubing
-
S2(n) Halogen free flame retardant thin wall H.S.T
-
S2(n) Halogen free flame retardent thin wall heat shrinkable tube
-
S2(n) Halogen free electronic insulation heat shrink tube
-
S2(n)Halogen free flame retardant heat shrinkable tube
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S2(n) | Type | Insulation Sleeving | |
| Material | Other, Composite Polymer, Polyolefin | Application | Low Voltage | |
| Rated Voltage | 1kV | Tensile Strength | >10.4Mpa |
Product Description
Specifications
Halogen free heat shrink tubing for insulationHighly flame retardant, flexible heat shrinkable tubing with environmentally f
Highly flame retardant, flexible heat shrinkable tubing with environmentally friendly halogen free formula. Excellent performance for various commercial applications where insulation, color-coding, bundling and light harness jacketing are desired.
1.Shrink ratio 2:1 and 3:1 available, providing easy installation even if there are large diameter differences
2.Excellent flexibility, does not easily wrinkle
3.Ideal for electronic insulation and protection, strain relief and wire bundling
4.Common applications include electronic systems of subway, air craft, submarine and other control room facilities and environments
5.RoHS compliant halogen free, environmentally friendly
6.Flame retardant meets the UL 224 VW-1 standard
Operation temperature: -40°C to 125°C
Shrink Temperature: 125°C
Color:
Black, red, blue, green, yellow, gray, transparent
Cross reference:
Raychem/Tyco: VERSAFIT V2
DSG Canusa: DERAY H
Sumitomo: F2(Z)
LG: GSHS-1625LT
