Heat Shrinkable Tube
Negotiable
/ Meter
1000 Meters(Min.Order)
- 3000 Meter / Meters per Month
- Dalian China
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S5 PVDF | Application | Other, medical equipment |
Product Description
Specifications
Heat shrink tubeShrink Ratio: 2:1
Semi-rigid PVDF
Flame retardant
High temperature resistant
heat shrink tube

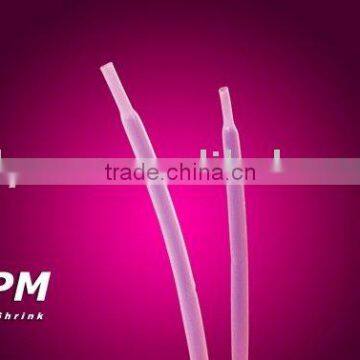

S5 PVDF Heat Shrinkable Tubing
Voltage Class 1kV Ideal for applications requiring protection and see-through inspection
Semi-rigid high abrasion resistant anti-corrosion Heat Shrinkable tubing. Ideal for use in electronic, automotive, airspace, military or other applications where protection and ability to be able to see-through inspection are required
Applications
In welding point, electrical wiring, wire terminals, joints, splice, connection and point of soldering
Features/Benefits
Shrink Ratio: 2:1
Semi-rigid
Highly resistant to abrasion, mechanical damage & cut-through
Excellent chemical and solvent resistance
Flame retardant
High temperature resistant (135 ºC &150 ºC &175 ºC)
Temperature Range
Operating Temperature : -55 ~ 175 ºC
Shrink Temperature : 175 ºC
Color:Black, Transparent
Product Code Cross References
Raychem/Tyco :RW-175 / Kynar
DSG Canusa :DERAY®KY175
Sumitomo : K
3M :KYNAR:
LG : GSHS-1675
Technical Details
Test Item | Test Method | Typical Value | |
Performance temperature range | IEC 216 | -55 to 175 | |
Before aging | Tensile strength | ASTM D638 | Min. 35MPa |
Break down elongation | ASTM D638 | Min. 150% | |
After aging | Tensile strength | 180/168h | No lower than 70% before aging |
Break down elongation | |||
Distortion | 150/h | Max. 50% | |
Heat resistance | 300/h | No cracking | |
Low temperature resistance | -55/4h | No cracking | |
Elasticity | 180/168h | No cracking | |
Incision modulus | -- | Min. 84.4MPa | |
Dielectric strength | ASTM D2671 | Min. 25kV/mm | |
Volume Resistivity | ASTM D876 | Min. 1013Ω .cm | |
Copper corrosion | 180/168h | No Corrosion | |
Copper stability | 180/168h | Stable | |
Flame retardant | VW-1 | Pass | |
Product Selection (S5 with Shrink Ratio 2:1)
| Product Code | Min wall thickness after free recovery(mm) | Standard Package(m/roll) |
S5-Φ1.2 | 0.20 | 200 |
S5-Φ1.6 | 0.20 | 100 |
S5-Φ2.4 | 0.23 | 100 |
S5-Φ3.2 | 0.23 | 100 |
S5-Φ4.8 | 0.23 | 1.22 |
S5-Φ6.4 | 0.28 | 1.22 |
S5-Φ9.5 | 0.28 | 1.22 |
S5-Φ12.7 | 0.28 | 1.22 |
S5-Φ19.1 | 0.40 | 1.22 |
S5-Φ25.4 | 0.40 | 1.22 |
S5-Φ38.1 | 0.40 | 1.22 |
S5-Φ50.8 | 0.45 | 1.22 |
ID: Internal Diameter
Ordering
When ordering this product, please specify 1) Product code 2) Color 3) Quantity required in rolls
