abrasive heat shrink sleeve
Negotiable
/ Meter
1000 Meters(Min. Order)
- Dalian China
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S8 | Material | Other, PE, Polyester | |
| Specification | Dia20mm-55mm | Length | 1m |
Product Description
Specifications
fishing rod tubeabrasive heat shrink tube
badminton rackets
fishing rods
baseball bats billiard cue
fishing tackle heat shrink tube

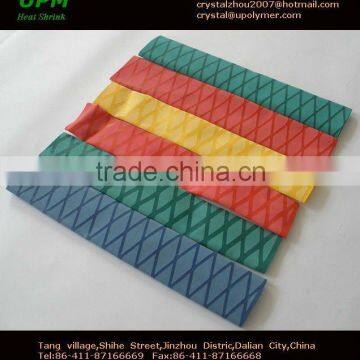

S8 Non-slip Decorative Pattern Heat Shrinkable Tube
Applications:
Wide range of applications - tennis rackets, badminton rackets, fishing rods, baseball bats, billiard cue, hockey sticks, industrial hand tools, athletic equipment and various handles. Increased friction and safety on smooth surfaces minimizes slipping.
Features/Benefits
Unique surface designed by environment friendly PE material for durable abrasion.
Flannel decorative surface provides excellent sweat absorption
Ratio 50% (2:1) will be conveniently applied in covering irregular shape
Avoiding and solving girdle loosen up from handle
Innovatory material designed for excellent performance and upgrade product value
Different colors and private pattern are available on request for individual design
Economical and easy to install, its well suited for the DIY market
Colors:BlackRedBlueYellowGreen, other colors on request.
Technical Details
Test item | Typical Value |
| Operation temperature | -55 to +110 |
| Tensile strength | 14Mpa |
| Shrinking temperature | Start at 70 |
| Radial shrink ratio | 50 |
| Rated volume | 600V |
| Dielectric strength | 25kV/mm |
| Volume resistance | 1014Ω.cm |
| Longitudinal shrinkage | 5 |
Product Selection
Product Code | Before Shrink mm | After Shrink (mm) | standard length (M) | ||
I.D. | W.T. | I.D. | W.T. | ||
S8-Φ20 | 20 | 0.65±0.1 | 10 | 2±0.2 | 1 |
S8-Φ22 | 22 | 0.65±0.1 | 11 | 2±0.2 | 1 |
S8-Φ25 | 25 | 0.65±0.1 | 12.5 | 2±0.2 | 1 |
S8-Φ28 | 28 | 0.65±0.1 | 14 | 2.2±0.2 | 1 |
S8-Φ30 | 30 | 0.65±0.1 | 15 | 2.2±0.2 | 1 |
S8-Φ35 | 35 | 0.8±0.1 | 17.5 | 2.2±0.2 | 1 |
S8-Φ40 | 40 | 0.8±0.1 | 20 | 2.2±0.2 | 1 |
S8-Φ45 | 45 | 0.8±0.1 | 22.5 | 2.2±0.2 | 1 |
S8-Φ50 | 50 | 0.8±0.1 | 25 | 2.2±0.2 | 1 |
S8-Φ55 | 55 | 0.8±0.1 | 27.5 | 2.2±0.2 | 1 |
ID: Internal Diameter
Ordering
When ordering this product, please specify 1) Product code 2) Color 3) Quantity required in rolls
