Fiber optic splice protector
- 10000000 Piece / Pieces per Month
- Dalian China
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | JTSP | Type | Heat Shrinkable | |
| Material | Other, PE |
Product Description
Specifications

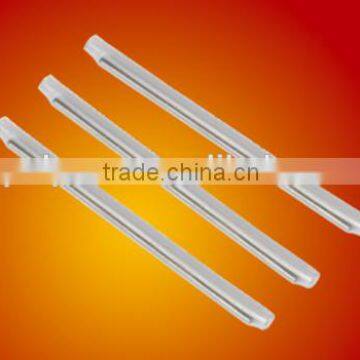

Specifically designed for fiber optic splice protectionJTSP Fiber Optic Splice protector
Specifically designed for fiber optic splice protection
Heat shrinkable polyolefin tubing system with a steel rod(ceramic rod for ribbon fiber) for mechanical protection and a hot fusion insert for sealing. This protector provides mechanical reinforcement at the joint point and maintains the optic transmission properties of the fiber optic cable
Features/Benefits:
1)Retains optic transmission properties of optical fiber
2)Reinforces and protects fiber optic splice
3)Clear sleeve for easy inspection and minimizing damage during installation
4)One piece design with hot fusion insert for sealing against moisture and other contaminants
5)Different colors of hot fusion insert for labeling and identification
6)RoHS compliant, halogen free environmentally friendly
7)Single fiber and ribbon fiber splice protector available
Operating temperature: -55°C to 100°C
Shrink temperature: 120°C
Color:
Sleeve: Transparent
Fusion insert: Transparent , red blue and green
Cross references:
Raychem/Tyco: SMOUV
DSG Canusa: CFSP
Sumitomo: SPF-1
