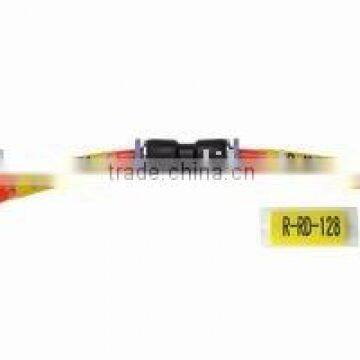

S2(s)Ultra Thin Wall Heat Shrinkable Tubing
- 0 per Month
You May Like
Product Details
| Brand Name | justup | |
| Model Number | WR-01 |
Product Description
Specifications
Provide excellent flame resistance, insulation, soft & flexible, with low shrink temperature for fast installationProduct Code Cross References
Raychem : VERSAFIT V4
DSG Canusa : DERAY-ITW
Sumitomo : F3(z)
LG : GSHS-1625GT
Voltage class 300V
Ideal for low voltage electrical insulation, wire harness bonding & ID Labeling/Marker
Provide excellent flame resistance, insulation, soft & flexible, with low shrink temperature for fast installation.
Applications
· Wire terminal insulation
· Wire bundling
· Identification marker
· Insulation and protection of low voltage electrical / electronic components
Features/Benefits
·Flame Resistant: UL VW-1 Grade
·Soft & Flexible
· Low shrink temperature, reduce installation time and minimize the risk of damage to temperature-sensitive electronic components during installation
Temperature Range
Operating Temperature : -40ºC ~ 90 ºC
Shrink Temperature : 90 ºC
Colour: Red, Blue, Yellow, Black, Green, Transparent
Product Code Cross References
Raychem : VERSAFIT V4
DSG Canusa : DERAY-ITW
Sumitomo : F3(z)
LG : GSHS-1625GT
Technical Details
Test Item | Test Method | Typical Value |
Tensile strength | ASTM D2671 | ≥ 10Mpa |
Break down elongation | ASTM D2671 | > 400% |
longitudinal shrink ratio | ASTM D2671 | ±5% |
Heat shock (200) | ASTM D2671 | No drop/no flow |
Flame retardant | ASTM D2863 | Oxygen Index >27 |
Dielectric strength | ASTM D2671 | > 15kV/mm |
Volume Resistivity | ASTM D2671 | > 1014Ω.cm |
Water absorption | ASTM D570 | < 0.5% |
Product Selection
Product Code | Before shrink | After shrink | Standard Package (m/roll) | ||
ID (mm) | Normal wall thickness (mm) | Max. ID (mm) | Min. wall thickness (mm) | ||
S2(s)-Φ1.0 | 1.3±0.2 | 0.10 | 0.50 | 0.20 | 200 |
S2(s)-Φ1.5 | 1.8±0.2 | 0.10 | 0.75 | 0.20 | 200 |
S2(s)-Φ2.0 | 2.3±0.2 | 0.13 | 1.00 | 0.22 | 200 |
S2(s)-Φ2.5 | 2.8±0.2 | 0.13 | 1.25 | 0.25 | 200 |
S2(s)-Φ3.0 | 3.3±0.3 | 0.13 | 1.50 | 0.28 | 200 |
S2(s)-Φ3.5 | 3.8±0.3 | 0.13 | 1.75 | 0.28 | 200 |
S2(s)-Φ4.0 | 4.3±0.3 | 0.15 | 2.00 | 0.28 | 200 |
S2(s)-Φ5.0 | 5.5±0.3 | 0.15 | 2.50 | 0.30 | 100 |
S2(s)-Φ6.0 | 6.5±0.4 | 0.15 | 3.00 | 0.30 | 100 |
S2(s)-Φ7.0 | 7.5±0.4 | 0.15 | 3.50 | 0.30 | 100 |
S2(s)-Φ8.0 | 8.5±0.4 | 0.15 | 4.00 | 0.32 | 100 |
S2(s)-Φ9.0 | 9.5±0.4 | 0.15 | 4.50 | 0.32 | 50 |
S2(s)-Φ10 | 10.5±0.4 | 0.15 | 5.00 | 0.32 | 50 |
S2(s)-Φ11 | 11.5±0.4 | 0.20 | 5.50 | 0.35 | 50 |
S2(s)-Φ12 | 12.5±0.4 | 0.20 | 6.00 | 0.35 | 50 |
S2(s)-Φ13 | 13.5±0.4 | 0.22 | 6.50 | 0.35 | 50 |
S2(s)-Φ14 | 14.5±0.4 | 0.23 | 7.00 | 0.40 | 50 |
S2(s)-Φ15 | 15.5±0.5 | 0.24 | 7.50 | 0.40 | 50 |
ID: Internal Diameter
