Home > Products > HDPE Anti-corrosion Mastic heat shrink tube > Electrical wire tubing
Electrical wire tubing
- Dalian China
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S3(c) | Type | Heat Shrinkable | |
| Material | PE |
Product Description
Specifications
1.Dual wall cross-linked polyolefin2.Self-priming black mastic sealant liner
3.Excellent corrosion
3.RoHS compliant
1.Dual wall cross-linked polyolefin
2.Self-priming black mastic sealant liner
3.Excellent corrosion
3.RoHS compliant

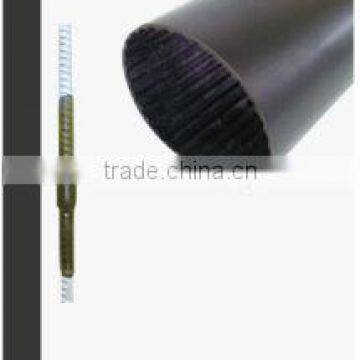

S3(c) DHPE Dual Wall Anti-Corrosion Black Mastic Tubing
Ideal for protection metal pipe and soil anchors against corrosion
Cross-linked dual wall HDPE heat shrinkable tubing with self-priming mastic sealant inner layer containing and active corrosion inhibitor. Provides excellent sealing against water, moisture and chemical solutions. Designed to prevent corrosion and protect metal pipelines and soil anchors.
1.Shrink ratio: 3:1
2.Dual layer system for corrosion protection of ground anchors
3.Specially formulated adhesive bonds to steel substrates and common pipeline coatings
4.Seals against water, moisture and chemical solutions
5.HDPE outer layer provides effective mechanical protection
6.Abrasion and corrosion resistant
7.Quick and easy field installation, no drying time, no primer required
8. RoHS compliant, halogen free
Operating temperature: -55°C to 135°C
Shrink temperature: 135°C
Color: Black
Cross references:
Raychem/Tyco: SATM
DSG Canusa: PLA
Technical Details
Test Item | Test Method | Typical Value |
Tensile Strength | ASTM D2671 | 17Mpa |
Elongation at break | ASTM D2671 | >400% |
Impact brittleness | ISO 974 | < -40 |
Water absorption (23oC for 24 hrs) | ISO 62 | < 0.1% |
Peel strength to steel at 23oC (cross head speed 100mm/min) | ISO 4587 | > 4N/cm |
Shear strength at 23oC (cross head speed 50mm/min) | ISO 4587 | > 10N/cm2 |
Adhesive softening point | ASTM E28 | > 95oC |
Product Selection
Product Code | Before Shrink | After Shrink (After Free Recovery) | Standard Length | ||||||
Internal Diameter | Wall Thickness | Internal Diameter | Wall Thickness | ||||||
(mm) | (inch) | (mm) | (mm) | (inch) | (mm) | (m) | (inch) | ||
S3(c)-Φ 33/9 | 33 | 1.299 | 1.2±0.2 | 9 | 0.354 | 2.9±0.1 | 1.22 | 48 | |
S3(c)-Φ 37/12 | 37 | 1.457 | 1.2±0.2 | 12 | 0.472 | 3.0±0.1 | 1.22 | 48 | |
S3(c)-Φ 45/22 | 45 | 1.772 | 1.3±0.2 | 22 | 0.866 | 2.7±0.1 | 1.22 | 48 | |
S3(c)-Φ55/22 | 55 | 2.165 | 1.2±0.2 | 22 | 0.866 | 2.7±0.1 | 1.22 | 48 | |
S3(c)-Φ 70/25 | 70 | 2.756 | 1.3±0.2 | 25 | 0.984 | 3.2±0.1 | 1.22 | 48 | |
S3(c)-Φ 75/25 | 75 | 2.953 | 1.2±0.2 | 25 | 0.984 | 3.2±0.1 | 1.22 | 48 | |
S3(c)-Φ 80/28 | 80 | 3.150 | 1.3±0.2 | 28 | 1.102 | 3.2±0.1 | 1.22 | 48 | |
S3(c)-Φ 95/36 | 95 | 3.740 | 1.3±0.2 | 36 | 1.417 | 3.3±0.1 | 1.22 | 48 | |
