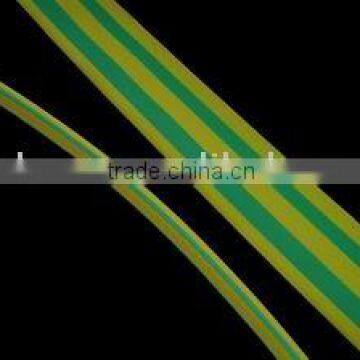

Green /Yellow Heat Shrink Tube
Negotiable
/ Meter
1000 Meters(Min.Order)
- 5000 Meter / Meters per Month
- Dalian China
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S11 | Type | Insulation Sleeving | |
| Material | PE | Application | Other, Low Voltage, as general purpose insulation jacket | |
| Rated Voltage | 1kV | Tensile Strength | 10Mpa |
Product Description
Specifications
marking / identification of wire & cablesAs identification for ground wire in cables
Grean and Yellow stripe
UL VW-1 grade
Heat shrink tube
Voltage Class 1kV General purpose tubing for insulation and easy marking / identification of wire & cables
Features/Benefits
Shrink ratio: 2:1
Flame resistant: UL VW-1 grade
High flexibility, easy to conform to irregular shapes
Co-extrusion of tubing colors, not ink marked
Temperature Range
Operating Temperature : -40~ 125 ºC
Shrink Temperature : 105~ 125 ºC
Color:Dual colored, stripes of Yellow and Green
Product Code Cross References
Raychem/Tyco : DCPT 2:1
DSG Canusa : CPX201
Sumitomo : B2(Y/G)
3M : GYS
LG : GSHS-1675
Technical Details
Test item | Test method | Typical value |
Tensile strength | ASTM D2671 | ≥ 10MPa |
Break out elongation | ASTM D2671 | ≥ 400% |
Tensile strength after aging (136 for 168h) | ASTM D2671 | ≥ 10MPa |
Flame retardant | ASTM D2863 | Oxygen Index ≥27 |
Break out elongation after aging (136 for 168h) | ASTM D2671 | ≥ 350% |
Dielectric strength | ASTM D2671 | ≥ 15 kV/mm |
Heat shock (200 for 4h) | ASTM D2671 | No drop / no flow |
Water absorption | ASTM D570 A | ≤ 0.5 % |
Low temperature flexibility (-40 for 4h) | ASTM D2671 | No cracking |
Product Selection
Product Code | ID after free shrink (mm) | Standard length (m/roll) | Product Code | ID after free recovery (mm) | Standard length (m/roll) |
S11-Φ1.0 | 0.5 | 200 | S11-Φ20.0 | 10.0 | 100 |
S11-Φ1.5 | 0.75 | 200 | S11-Φ22.0 | 11.0 | 100 |
S11-Φ2.0 | 1.0 | 200 | S11-Φ25.0 | 12.5 | 50 |
S11-Φ2.5 | 1.25 | 200 | S11-Φ28.0 | 14.0 | 50 |
S11-Φ3.0 | 1.5 | 200 | S11-Φ30.0 | 15.0 | 50 |
S11-Φ4.0 | 2.0 | 100 | S11-Φ35.0 | 17.5 | 50 |
S11-Φ5.0 | 2.5 | 100 | S11-Φ40.0 | 20.0 | 50 |
S11-Φ6.0 | 3.0 | 100 | S11-Φ50.0 | 25.0 | 25 |
S11-Φ7.0 | 3.5 | 100 | S11-Φ60.0 | 30.0 | 25 |
S11-Φ8.0 | 4.0 | 100 | S11-Φ70.0 | 35.0 | 25 |
S11-Φ10.0 | 5.0 | 100 | S11-Φ80.0 | 40.0 | 25 |
S11-Φ12.0 | 6.0 | 50 | S11-Φ90.0 | 45.0 | 25 |
S11-Φ13.0 | 6.5 | 50 | S11-Φ100.0 | 50.0 | 25 |
S11-Φ16.0 | 8.0 | 50 | S11-Φ120.0 | 60.0 | 15 |
S11-Φ18.0 | 9.0 | 100 | S11-Φ150.0 | 75.0 | 15 |
