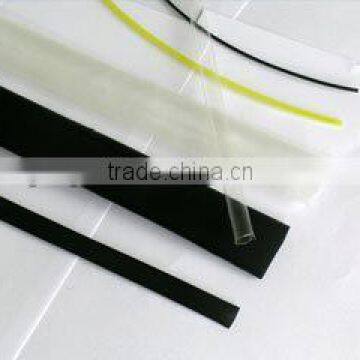

Transparent PVDF electrical Heat Shrink Tubing

FOB Price

USD $1.5 - $8

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.High temperature protection
2.Excellent abrasion resistance
3.Excellent chemical and solvent resistance

1.High temperature protection
2.Excellent abrasion resistance
3.Excellent chemical and solvent resistance

Standard Specifications:
Inner packing:
Plastic packing

Outer packing:
Carton

Technical Details

Test Item		Test Method	Typical Value
Performance temperature range		IEC 216	-55°C to 175°C
Before aging	Tensile strength	ASTM D638	Min. 35MPa
	Break down elongation	ASTM D638	Min. 150%
After aging	Tensile strength	180°C/168h	No lower than 70% before aging
	Break down elongation
Distortion		150°C/h	Max. 50%
Heat resistance		300°C/h	No cracking
Low temperature resistance		-55°C/4h	No cracking
Elasticity		180°C/168h	No cracking
Incision modulus		--	Min. 84.4MPa
Dielectric strength		ASTM D2671	Min. 25kV/mm
Volume Resistivity		ASTM D876	Min. 10¹³Ω .cm
Copper corrosion		180°C/168h	No Corrosion
Copper stability		180°C/168h	Stable
Flame retardant		VW-1	Pass

Product Selection (S5 with Shrink Ratio 2:1)

Product Code	Min wall thickness after free recovery(mm)	Standard Package(m/roll)
S5-Φ1.2	0.20	200
S5-Φ1.6	0.20	100
S5-Φ2.4	0.23	100
S5-Φ3.2	0.23	100
S5-Φ4.8	0.23	1.22
S5-Φ6.4	0.28	1.22
S5-Φ9.5	0.28	1.22
S5-Φ12.7	0.28	1.22
S5-Φ19.1	0.40	1.22
S5-Φ25.4	0.40	1.22
S5-Φ38.1	0.40	1.22
S5-Φ50.8	0.45	1.22
