Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S3(t) | Type | Insulation Sleeving | |
| Material | Other, Composite Polymer, Polyolefin | Application | Low Voltage | |
| Rated Voltage | 1kV | Tensile Strength | >10.4Mpa |
Product Description

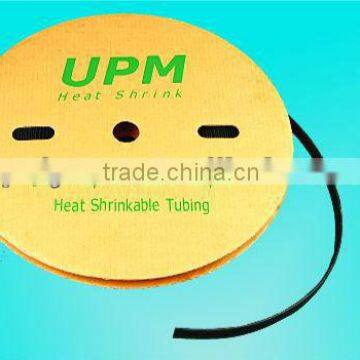

S3(t) Flame retardant Thin Wall Heat Shrinkable Tubing
Voltage class 1kV for Insulation and Waterproof protection
Dual wall heat shrinkable tubing with cross-linked flexible polyolefin outer layer for insulation, corrosion resistance, and mechanical stress release, hot melt adhesive inner layer for waterproof sealing. Ideal for a variety of application including connector-to cable sealing wire harness bundles and splices.
Features/Benefits
1)Large shrink ratio: 3:1 and 4:1, providing easy installation even if there are large diameter differences between the cable and the connector
2)Certified by UL E236437(outer layer)
3)RoHS compliant
4)Adhesive inner layer for waterproof sealing against moisture or other contaminants
5)Inner adhesive bonds to a variety of plastics, rubbers, and metals including polyethylene, aluminum, steel and copper
6)Ideal for insulation, corrosion resistance, ad mechanical stress relief
7)The outer layer flame retardant feature meets the UL 224 VW-1 standard
Temperature range:
Operating temperature: -40°C to 135°C
Shrink temperature: 125°C
Color: Red, green white yellow, black, and transparent
Cross references:
Raychem/Tyco: ATUM
DSG Canusa: CPA100
Sumitomo: W3B2
LG: GSHS-3635W
