Polyvinylidene Fluoride PVDF Heat Shrinkable Tubing

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Excellent abrasion resistance
2.Excellent chemical and solvent resistance
3.High temperature protection(150C and 175C)

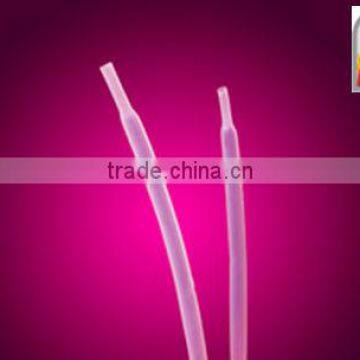

S5 Polyvinylidene Fluoride (PVDF) Heat Shrinkable Tubing

1.Excellent abrasion resistance
2.Excellent chemical and solvent resistance
3.High temperature protection(150C and 175C)

Ideal for high temperture protection and see-through inspection

Technical Details

Test Item	Test Method	Typical Value
Performance temperature range	IEC 216	-55oC to 175 oC
Before aging: Tensile strength	ASTM D638	Min. 35Mpa
Before aging: Breakdown elongation	ASTM D638	Min. 150%
After aging: Tensile strength	180oC for 168 hrs	No lower than 70% before aging
After aging: Breakdown elongation	180oC for 168 hrs	No lower than 70% before aging
Heat resistance	300oC/hr	No cracking
Distortion	150oC/hr	Max. 50%
Low temperature resistance	-55oC for 4 hrs	No cracking
Elasticity	180oC for 168 hrs	No cracking
Incision modulus	- -	Min. 84.4 Mpa
Dielectric strength	ASTM D2671	Min. 25kV/mm
Volume resistivity	ASTM D876	Min. 1013 Ω.cm
Copper corrosion	180oC for 168 hrs	No corrosion
Copper stability	180oC for 168 hrs	Stable
Flame retardant	UL VW-1	Pass

Product Selection (Shrink Ratio 2:1)

Product Code	Internal Diameter Before Shrink/After Shrink		Minimum Wall Thickness After Shrink		Standard Length (m/roll)
Product Code	(mm)	(inch)	(mm)	(inch)	Standard Length (m/roll)
S5-Φ1.2	1.2/0.6		0.20	0.008	200
S5-Φ1.6	1.6/0.8		0.20	0.008	100
S5-Φ2.4	2.4/1.2		0.23	0.009	100
S5-Φ3.2	3.2/1.6		0.23	0.009	100
S5-Φ4.8	4.8/2.4		0.23	0.009	1.22
S5-Φ6.4	6.4/3.2		0.28	0.011	1.22
S5-Φ9.5	9.5/4.8		0.28	0.011	1.22
S5-Φ12.7	12.7/6.4		0.28	0.011	1.22
S5-Φ19.0	19.0/9.5		0.40	0.016	1.22
S5-Φ25.4	25.4/12.7		0.40	0.016	1.22

Product Code Cross References

Raychem/Tyco: RW-175/KYNAR

DSG Canusa: DERAY®KY175

Sumitomo: K

3M: KYNAR

LG: GSHS-1675
