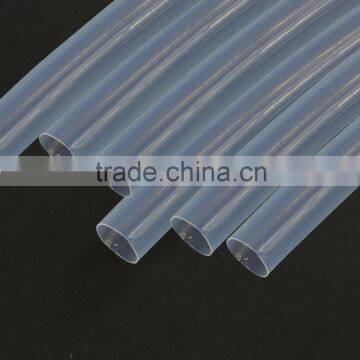

PTFE Heat Shrink Tubing

FOB Price

US$ 0.01 - 9.99 / Meter

1000 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Special used in the surroundings of extreme electricity, chemistry and heat

	S5 PTFE Heat Shrink Tube
Features
Semi-rigid, cross-linked PTFE		Operating temperature: -80~260 ℃
Exceptional electrical properties		Shrink temperature: 350 ℃
High Flame retardant		Shrink Ratio:1.7:1
High temperature protection
Dimensions
Reference	As supplied(mm)	After recovered(mm)		Standard length
UPM S5 PTFE	ID min.	ID max.	WT nom.	m
0.5	0.7±0.2	0.4	0.20	200
1.0	1.0±0.2	0.5	0.20	200
1.5	1.5±0.2	0.9	0.20	200
2.0	2.0±0.2	1.3	0.20	200
2.5	2.5±0.2	1.5	0.20	200
3.0	3.0±0.2	1.8	0.20	200
3.5	3.5±0.2	2.0	0.20	100
3.8	3.8±0.2	2.0	0.20	100
4 .0	4 .0±0.3	2.5	0.25	100
4.5	4.5±0.3	2.8	0.25	100
5.0	5.0±0.3	3.0	0.25	100
6.0	6.0±0.3	3.8	0.25	100
7.0	7.0±0.3	4.0	0.25	100
8.0	8.0±0.3	4.8	0.25	1
9.0	9.0±0.3	5.0	0.30	1
ID=Internal Diameter		WT=wall thickness

Technical Data
Property		Test method	Values
Physical	Density	ASTM D792	2.10~2.29
	Water absorption	ASTM D570	≤0.1%
	Tensile strength	ASTM D2671	≥17MPa
	Breakdown elongation	ASTM D2671	≥200%
	Hardness Shore D	ASTM D785	50-60 HD
	Heat shock(400℃/4hs)	ASTM D 2671	No drop/No flow
	Low temperature flexibility(-65℃/4hs)	ASTM D 2671	No cracking
Electrical	Volume resistivity	ASTM D 2671	≥1018 Ω.cm
	Dielectric strength	ASTM D2671	≥25 KV/mm
Chemical	Flammability	ASTM D2671	Not flammable
	Organic dissolvent resistance	ASTM D543	No change
	Effect by the sunshine	--	No

Typical application
Specially used in the surroundings of extreme electricity, chemistry and heat

Ordering
Standard color : Clear.
Standard packaging on spools and/or 1m/pc.
Please specify specification, color, quantity when ordering
Cross reference
Raychem/Tyco : RW-175/ TFE
